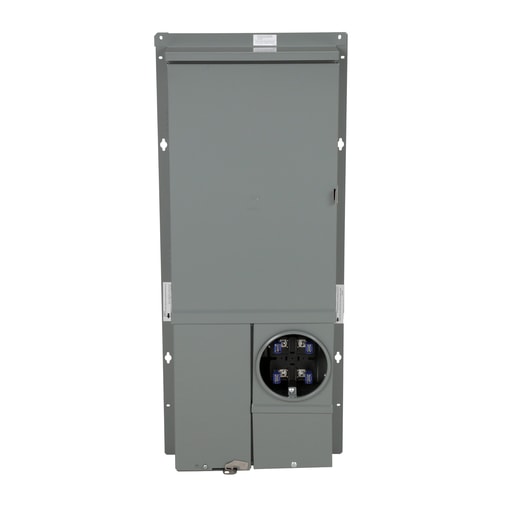

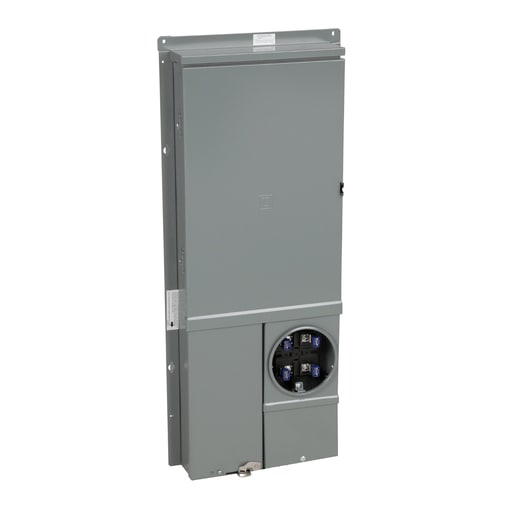

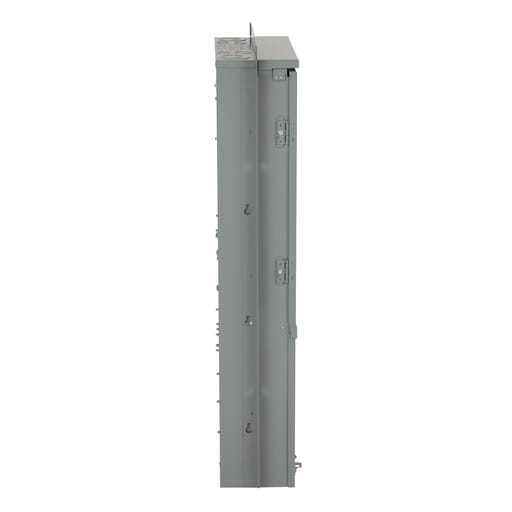

Square-D / Schneider - Square D SC2040M200PF Solar Ready Main Breaker Load Center 200A 20/40 Space Comb Service Entrance

Essential specifications

12-Digit UPC - 785901122265
Amperage - 200 Amp
Catalog Number - SC2040M200PF
Conductor Size - 8-2/0 AWG
Country of Origin - Mexico

Packaging

1 ea

EAN

00785901122265

Part #

227408

Catalog #

SC2040M200PF

Commercial reference

SC2040M200PF

12-Digit UPC:

785901122265

Amperage:

200 Amp

Catalog Number:

SC2040M200PF

Conductor Size:

8-2/0 AWG

Country of Origin:

Mexico

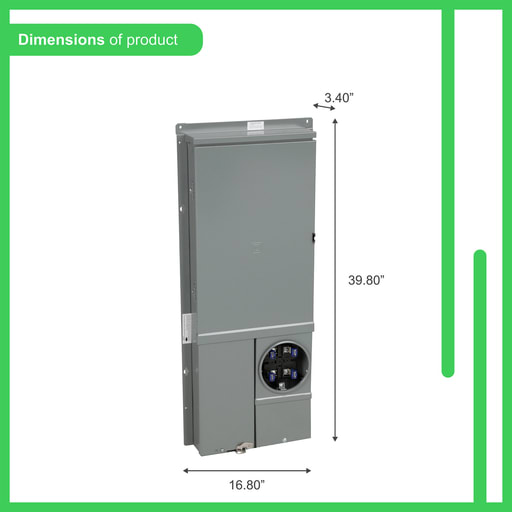

Depths:

3.4 Inch

ERP_productname:

SQD SC2040M200PF ALL-IN-ONE RING OH/UG SEMIFLUSH 200A SOL

Family Brand Name:

Square D

Heights:

39.8 Inch

Mounting Type:

Semi Flush (outdoor)

Number of Circuits:

Number of Phases:

1 Phase

Short Circuit Current:

22 kA

Short Circuit Current Ratng:

22 kA

Size:

16.8 IN,39.8 IN

Sub Brand:

HOMELINE

Type:

ALL-IN-ONE,RINGED

Widths:

16.80 in

Wire Size:

AWG 8...AWG 2/0 aluminium/copper)service ground;AWG 4...250 kcmil aluminium/copper)line side

SoneparProductId:

SKU_US_30072294

The Square D® Homeline® Load Centers and Homeline Solar Ready PoN CSEDs, SC2040M200PF, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2.Suitable for OH service with addition of tunnel kit (SCTKP20). Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: A100; A200; A250; HEPD25; LK100AN; QOM2200VH; QOM2200VH1021; SR69064A; HEPD50; HOM220GFI; 5J; HEPD80; HOM120; HOM120PDF; HOM250PSPD; SCTKP30; HOM115PCAFI; SR69064AF; A200L; HOM2175SB; A250L; HOMFP; PK15GTA
