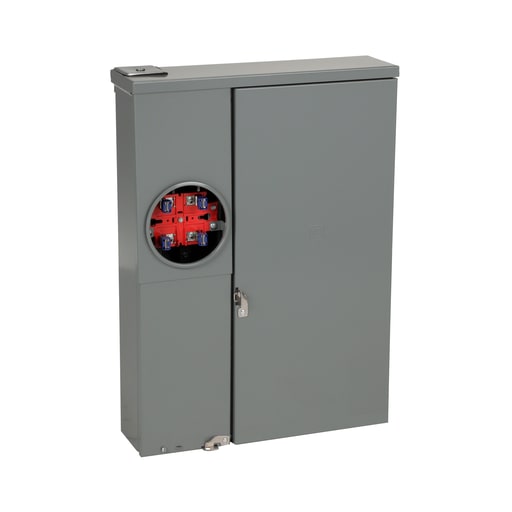

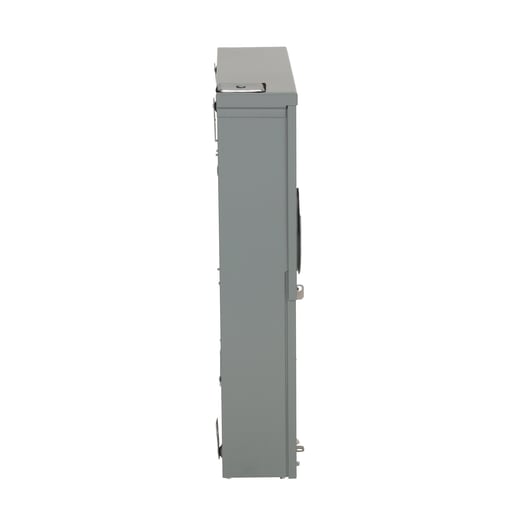

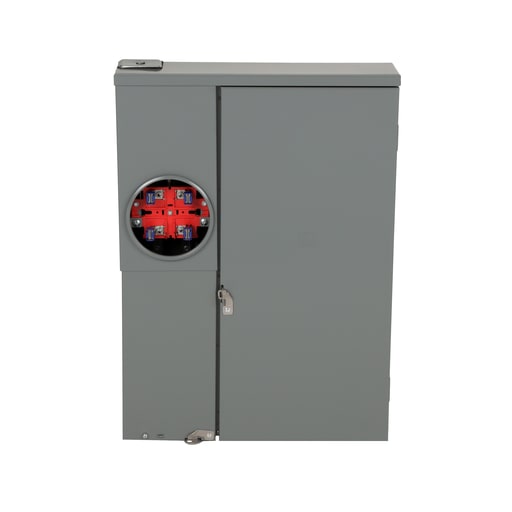

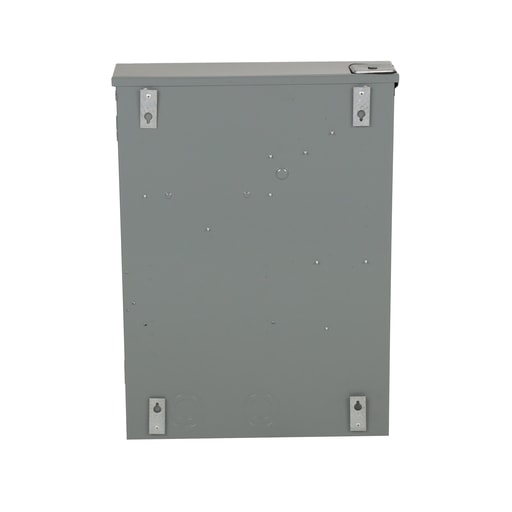

Square-D / Schneider - Square D SC2040M200PS Solar Ready Main Breaker Load Center All-in-One Ring OH/UG Surface 200A
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901342267
Amperage - 200 Amp
Catalog Number - SC2040M200PS
Color - Gray
Conductor Size - 4 AWG-250 kcmil
Packaging
1 ea
EAN
00785901342267
Part #
227568
Catalog #
SC2040M200PS
Commercial reference
SC2040M200PS
12-Digit UPC:
785901342267
Amperage:
200 Amp
Catalog Number:
SC2040M200PS
Color:
Gray
Conductor Size:
4 AWG-250 kcmil
Depths:
5.79 Inch
ERP_productname:
SQD SC2040M200PS ALL-IN-ONE RING OH/UG SURFACE 200A SOLAR
Family Brand Name:
Square D
Heights:
30.39 Inch
Mounting Type:
Surface
Number of Circuits:
40
Short Circuit Current:
22 kA
Widths:
21.50 in
Wire Size:
AWG 4...250 kcmil aluminium/copper)line side;AWG 14...AWG 2/0 aluminium/copper)service ground
SoneparProductId:
SKU_US_32325552
The Square D® Homeline® Load Centers and Homeline Solar Ready PoN CSEDs, SC2040M200PS, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2.Supplied with load side feed-thru lugs, for 4AWG-250 kcmil Al/Cu conductors.
