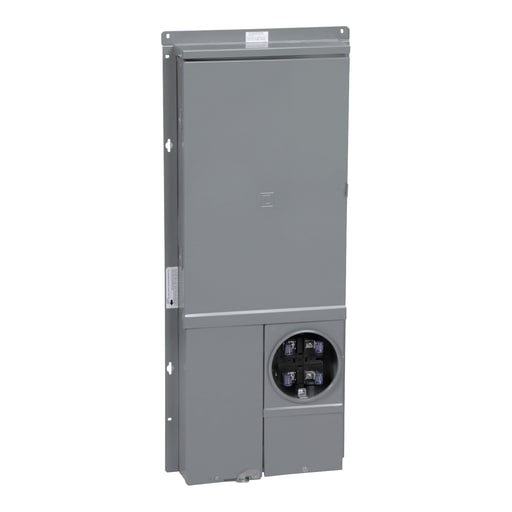

Square-D / Schneider - Square D SC816F200PF Solar Ready Meter Main 200A 8/16 Space Comb Service Entrance

12-Digit UPC:

785901861744

Amperage:

200 Amp

Catalog Number:

SC816F200PF

Conductor Size:

4 AWG-250 kcmil

Country of Origin:

Mexico

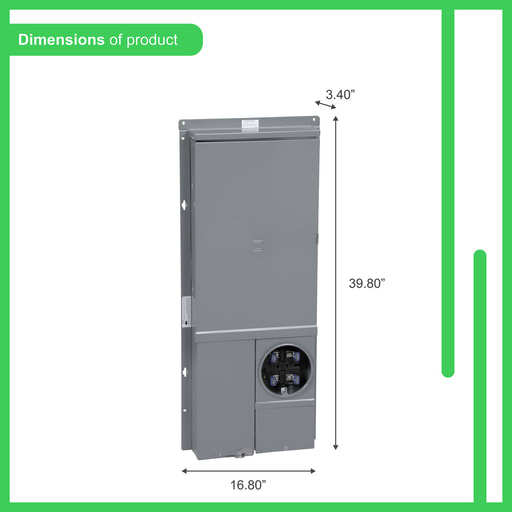

Depths:

3.4 Inch

ERP_productname:

SQD SC816F200PF METER MAIN RING OH/UG SEMIFLUSH 200A SOL

Enclosure:

NEMA 3R

Family Brand Name:

Square D

Heights:

39.8 Inch

Mounting Type:

Semi Flush (outdoor)

Number of Circuits:

16

Number of Phases:

1 Phase

Short Circuit Current:

22 kA

Short Circuit Current Ratng:

22 kA

Size:

39.80 in

Sub Brand:

HOMELINE

Type:

Ringed;Meter Mains

Widths:

16.80 in

Wire Size:

AWG 4...250 kcmil aluminium/copper)line side;AWG 8...AWG 2/0 aluminium/copper)service ground;AWG 6...250 kcmil aluminium/copper)load side

SoneparProductId:

SKU_US_89569805
