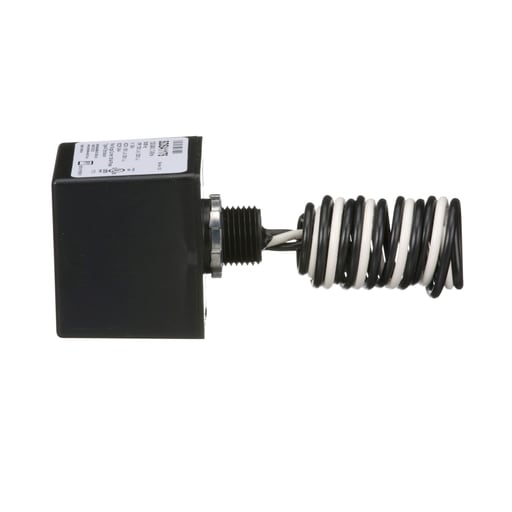

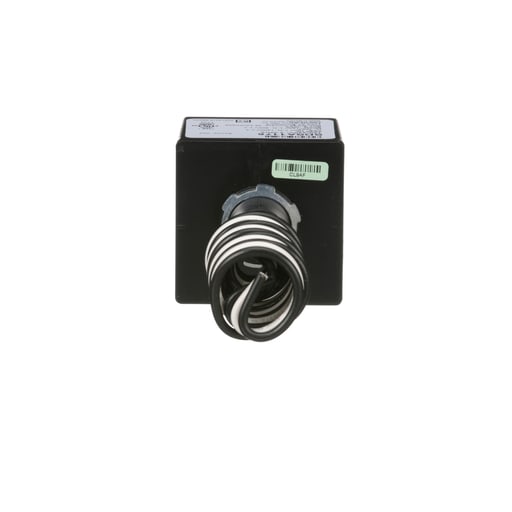

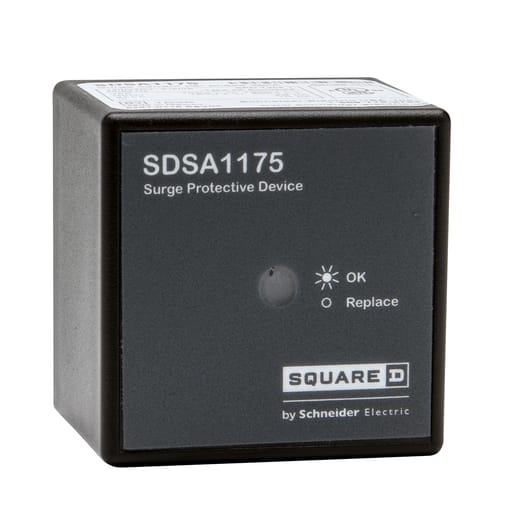

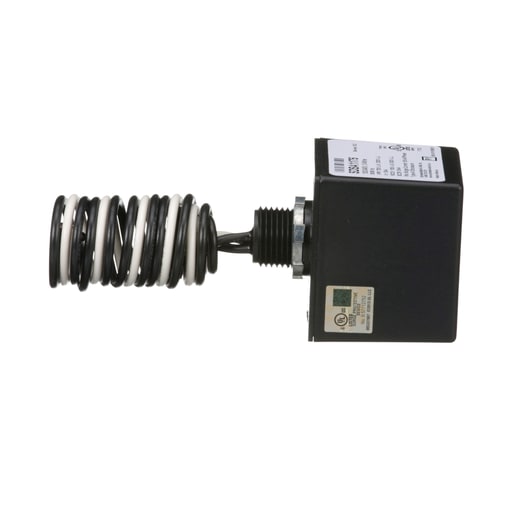

Square-D / Schneider - Square D SDSA1175 Load Center 1Ph Secondary Surge Arrestor
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901210870
Applications - LOAD CENTERS AND CSEDS
Catalog Number - SDSA1175
Country of Origin - Mexico
Depths - 2.7 Inch
Packaging
1 ea
EAN
00785901210870
Part #
126640
Catalog #
SDSA1175
Commercial reference
SDSA1175
12-Digit UPC:
785901210870
Applications:
LOAD CENTERS AND CSEDS
Catalog Number:
SDSA1175
Country of Origin:
Mexico
Depths:
2.7 Inch
ERP_productname:
SQD SDSA1175 ARRESTOR 36KA 120/240V 1-PHASE 3-WIRE
Enclosure:
4X
Enclosure Material:
Plastic
Family Brand Name:
Square D
Heights:
2-1/4 Inch
Interrupt Rating:
25 kAIC
Length:
24 Inch
NEMA Size:
4X
Number of Phases:
1 Phase
Sub Brand:
QO
Type:
Surge protection device
Voltage:
120/240 Volt
Widths:
2.25 in
SoneparProductId:
SKU_US_25679683
This surge protection device from Square D is a type 1 device that can be used with or without an over current protection device. This device can be used indoors or outdoors to provide surge suppression for 1 PH, 3 wire, 120/240 VAC or 2 wire, 120 VAC systems. With a short circuit current rating 25 kA, back nipple mounting, and NEMA 4X rating, this compact design can be placed adjacent to power panels. The unit is set for NEC, CSA, and UL standards. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: HOM3060M200PTBP; QO1816M150FTRB; QO1816M200FTRB
