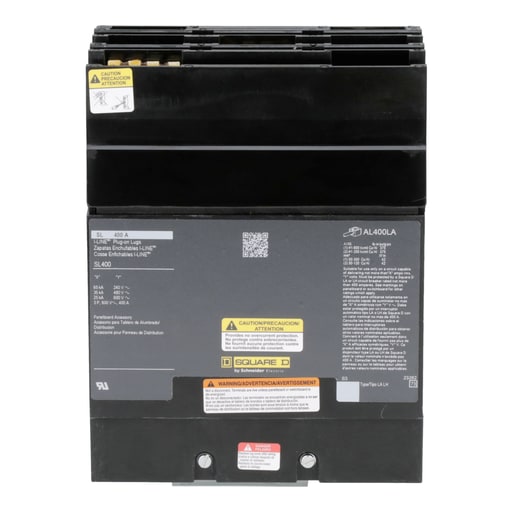

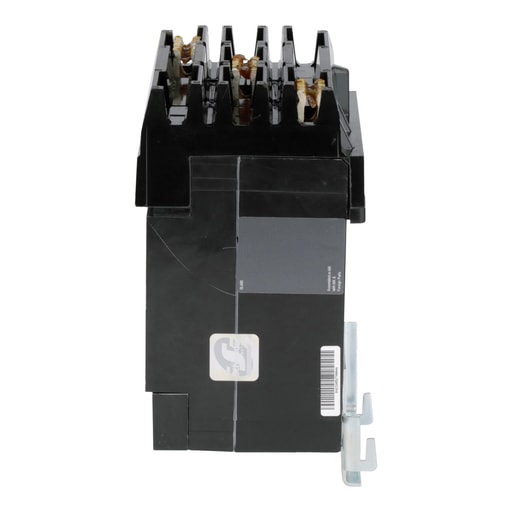

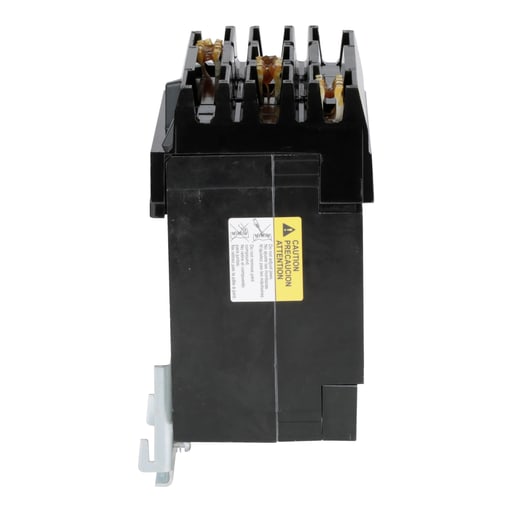

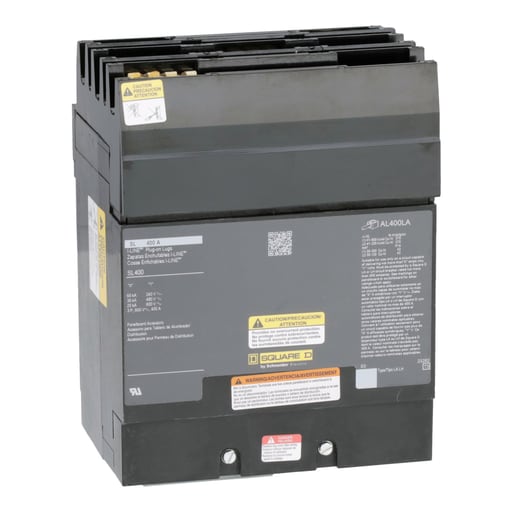

Square-D / Schneider - Square D SL400 3-Pole 400 Amp 1 AWG to 600 MCM or 1 AWG to 250 MCM Panelboard Sub Feed Lug Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901009832
Amperage - 400 Amp
Applications - PANELBOARD HCP 2184 MM 1067 MM-PANELBOARD HCP-SU 2184 MM 660 MM
Catalog Number - SL400
Country of Origin - USA
Packaging
1 ea
EAN
00785901009832
Part #
144191
Catalog #
SL400
Commercial reference
SL400
12-Digit UPC:
785901009832
Amperage:
400 Amp
Applications:
PANELBOARD HCP 2184 MM 1067 MM-PANELBOARD HCP-SU 2184 MM 660 MM
Catalog Number:
SL400
Country of Origin:
USA
ERP_productname:
SQD SL400 CIRCUIT BREAKER SUB-FEED LUG KIT
Family Brand Name:
Square D
Length:
152 mm
Size:
5.98 in
Sub Brand:
SQUARE D
Tc Connection:
(1)#1 TO 600 AWG/KCMIL(AL/CU)
Type:
Sub-feed lug
SoneparProductId:
SKU_US_26890276
This is a connection accessory for I-Line Panelboards. This is a plug-on subfeed lug kit for I-Line panelboards for PowerPact L-Frame, LA-LH circuit breakers. This has a amperage rating of 400 amps. The frame size 400 amp. The lug accepts (1) #1-600 kcmil, (2) #1-250 kcmil, Al/Cu. This product complies with UL standards. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: HCP14504; HCP50864; LH26400AC; HCP50866; HCP50868; HCP32688; HCP32686; HCP32684; HCP23598; HCP23596; HCP23594; HCP14508; HCP14506; HCP54868SU; HCR548612U
