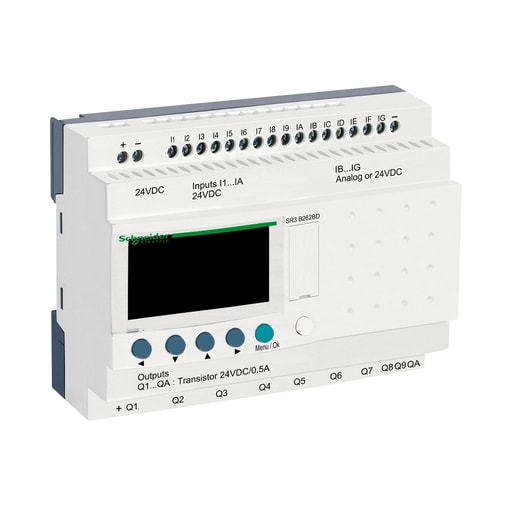

Square-D / Schneider - Square D SR3B262BD MODULAR SMART RELAY, ZELIO SR3 26 I-O 24VDC TRANSISTOR

Essential specifications

12-Digit UPC - 785901422495
Amperage - 180 MA WITH EXTENSIONS)-70 MA WITHOUT EXTENSION)
Catalog Number - SR3B262BD
Country of Origin - France
ERP_productname - SQD SR3B262BD MODULAR SMART RELAY, ZELIO LOGIC, 26 I/O, 24 V DC, CLOCK, DISPLAY

Packaging

1 ea

EAN

03389110549997

Part #

350173

Catalog #

SR3B262BD

Commercial reference

SR3B262BD

12-Digit UPC:

785901422495

Amperage:

180 MA WITH EXTENSIONS)-70 MA WITHOUT EXTENSION)

Catalog Number:

SR3B262BD

Country of Origin:

France

ERP_productname:

SQD SR3B262BD MODULAR SMART RELAY, ZELIO LOGIC, 26 I/O, 24 V DC, CLOCK, DISPLAY

Enclosure:

IP20 (TERMINAL BLOCK) CONFORMING TO IEC 60529-IP40 (FRONT PANEL) CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Output Voltage:

24 V

Size:

MODULAR

Sub Brand:

ZELIO LOGIC 2

Tc Connection:

SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA. AWG 25...AWG 14) SEMI-SOLID-SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA. AWG 25...AWG 14) SOLID-SCREW TERMINALS, 1 X 0.25...1 X 2.5 MMA. AWG 24...AWG 14) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA. AWG 24...AWG 16) SOLID-SCREW TERMINALS, 2 X 0.25...2 X 0.75 MMA. AWG 24...AWG 18) FLEXIBLE WITH CABLE END

Type:

MODULAR SMART RELAY

SoneparProductId:

SKU_US_30110267

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ESR2SFT01; SR2MEM02; TM1STNTCRN52015; SR2CBL01; SR2COM01; SR2USB01; TM1STNTCRN52030; TM1STNTCRN52050; TM1STNTCRN61515; TM1STNTCRN61530; TM1STNTCRN61550; TM1STNTCSF44015; TM1STNTCSF44030; TM1STNTCSN62015; TM1STNTCSN62030; TM1STNTCSN62050; TM1STNTCTN62015; TM1STNTCTN62030; TM1STNTCW69755; TM1STNTCWN75750 - Cross Sell Products: SR3XT43BD; SR3XT61BD; SR3XT101BD; SR3XT141BD
