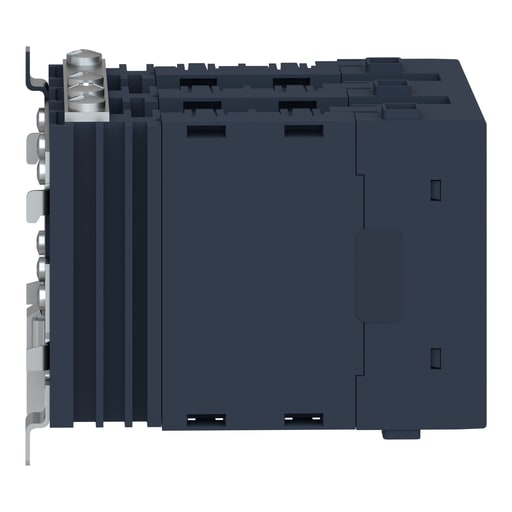

Square-D / Schneider - Square D SSM3A325BD SSR 3 CH 25A@48-600VAC ZC 4-32

Essential specifications

12-Digit UPC - 606485441712
Amperage - 25 Amp
Applications - 1 HP 40 A.C 240 V AC-2 HP 40 A.C 380 V AC-3 HP 40 A.C 480 V AC
Catalog Number - SSM3A325BD
Country of Origin - Mexico

Packaging

1 ea

EAN

03606485441719

Part #

107868

Catalog #

SSM3A325BD

Commercial reference

SSM3A325BD

12-Digit UPC:

606485441712

Amperage:

25 Amp

Applications:

1 HP 40 A.C 240 V AC-2 HP 40 A.C 380 V AC-3 HP 40 A.C 480 V AC

Catalog Number:

SSM3A325BD

Country of Origin:

Mexico

ERP_productname:

SQD SSM3A325BD SSR 3 CH, 25A@48-600VAC ZC, 4-32 VDC

Family Brand Name:

Schneider Electric

Number of Phases:

3 Phase

Output Voltage:

48-600 V

Sub Brand:

SSM3

Tc Connection:

SCREW TERMINALS 0.2...1.3 MMA., AWG 24...AWG 16) INPUT-SCREW TERMINALS 1.3...5.3 MMA., AWG 16...AWG 10) OUTPUT

Type:

Solid state relay

Widths:

90 mm

SoneparProductId:

SKU_US_31617008

This SSM three-phase solid state relay is part of the range of solid state modular relays Harmony. It features 25A power rating and 1NO contact. It features a control circuit voltage of 4V to 32V DC and an output voltage (load output) of 48V to 660V AC. This relay is maintenance free, fully electronic with unlimited life span. It features a control input voltage LED indicator in green. Its protection index is IP20. It weighs 740g and its dimensions are, 90mm wide, 97mm high, 123.8mm deep. 0 It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. 0 0 0 It can be mounted on 35mm DIN rail. 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: XB5RFA02; XARS8L12W
