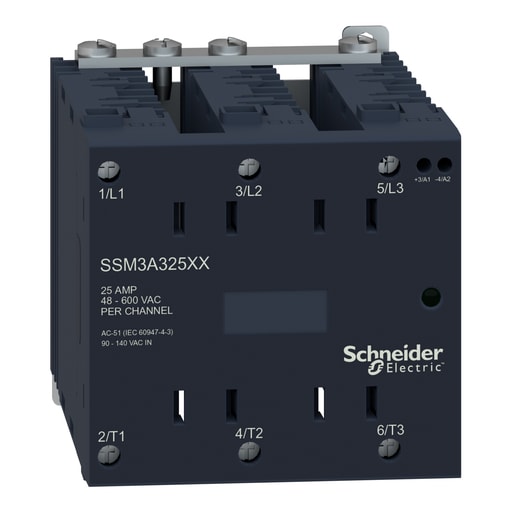

Square-D / Schneider - Square D SSM3A325F7 SOLID STATE RELAY - DIN RAIL MOUNT

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606485441699

  • Amperage - 25 Amp

  • Applications - 1 HP 40 A.C 240 V AC-2 HP 40 A.C 380 V AC-3 HP 40 A.C 480 V AC

  • Catalog Number - SSM3A325F7

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

03606485441696

Part #

221455

Catalog #

SSM3A325F7

Commercial reference

SSM3A325F7

12-Digit UPC:

606485441699

Amperage:

25 Amp

Applications:

1 HP 40 A.C 240 V AC-2 HP 40 A.C 380 V AC-3 HP 40 A.C 480 V AC

Catalog Number:

SSM3A325F7

Country of Origin:

Mexico

ERP_productname:

SQD SSM3A325F7 SSR 3 CH, 25A@48-600VAC ZC, 90-140VAC

Family Brand Name:

Schneider Electric

Number of Phases:

3 Phase

Output Voltage:

48-600 V

Sub Brand:

SSM3

Tc Connection:

SCREW TERMINALS 0.2...1.3 MMA., AWG 24...AWG 16) INPUT-SCREW TERMINALS 1.3...5.3 MMA., AWG 16...AWG 10) OUTPUT

Type:

Solid state relay up to 30 A

Widths:

90 mm

SoneparProductId:

SKU_US_29271842

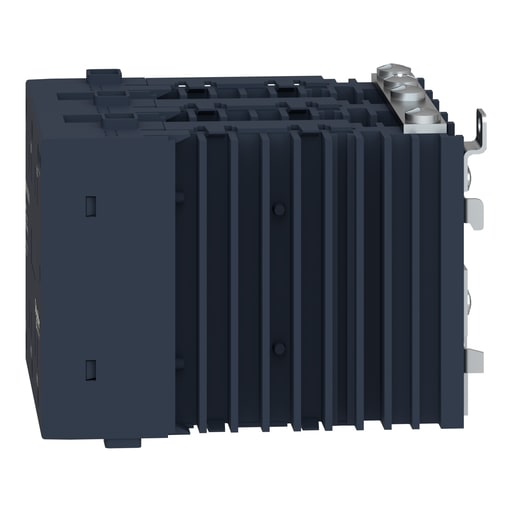

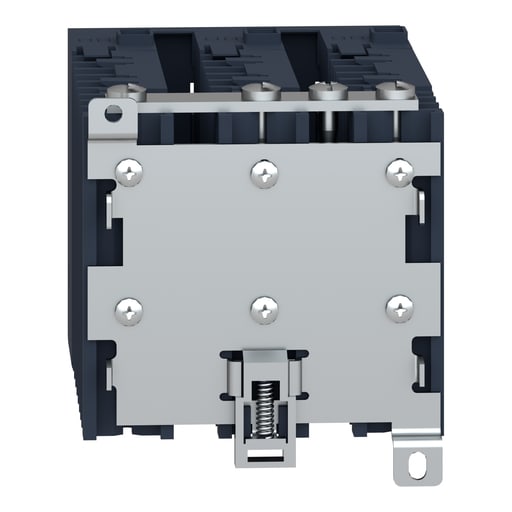

This static relay has a built-in heatsink for limited derating while limiting occupied space in panel It also has a visual indicator showing the status of its input Its rated current is 25 A, is controlled with a 90 to 140 V AC circuit, has a rated load voltage of 48 to 600 V AC output. It mounts on symetrical DIN rails and comes with a secure mounting latch Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: XB5RFA02; XARS8L12W
