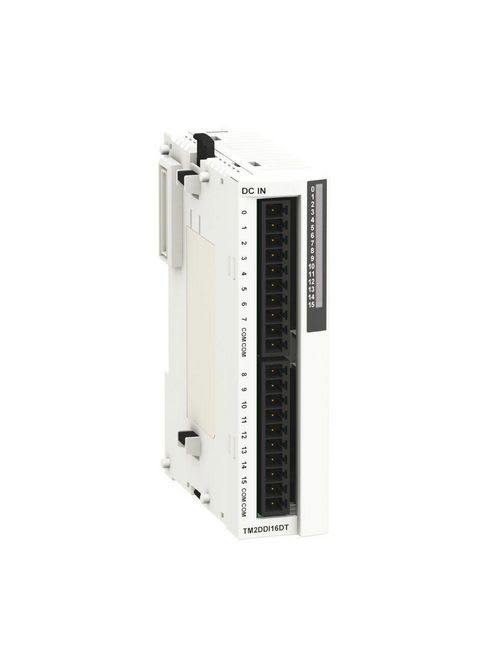

Square-D / Schneider - Square D TM2DDI16DT 16-Input 24 VDC Screw Terminal Digital Input Expansion Module
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901676126
Applications - MODICON LMC058, MODICON M258
Catalog Number - TM2DDI16DT
Country of Origin - Japan
Current - 40 mA
Packaging
1 ea
EAN
03595863995763
Part #
214684
Catalog #
TM2DDI16DT
Commercial reference
TM2DDI16DT
12-Digit UPC:
785901676126
Applications:
MODICON LMC058, MODICON M258
Catalog Number:
TM2DDI16DT
Country of Origin:
Japan
Current:
40 mA
Depths:
3.33 Inch
ERP_productname:
SQD TM2DDI16DT EXPANSION 16 IN DC RM TBK
Family Brand Name:
Schneider Electric
Heights:
3.54 Inch
Impedance:
3.4 kOhm
Length:
84.6 mm
Sub Brand:
MODICON
Type:
DISCRETE INPUT MODULE
Widths:
0.93 in
SoneparProductId:
SKU_US_25466193
This digital input module is part of the range Modicon TM2 expansion modules. It consists in 16 digital inputs with sink / source logic and it works at 24V dc rated power supply. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. It is compatible with Modicon OTB interface modules, Magelis HMI controller XBTGC and Modicon / Twido controllers.
