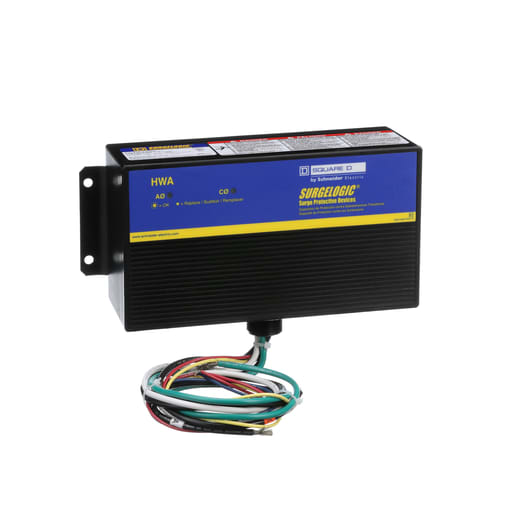

Square-D / Schneider - Square D TVS1HWA50X 120/240 VAC 50 kA 1-Phase 3-Wire NEMA 4X Non-Modular Surge Protective Device

Essential specifications

12-Digit UPC - 785901293644
Applications - SUITABLE FOR USE IN SERVICE ENTRANCE LOCATIONS
Catalog Number - TVS1HWA50X
Depths - 3.1 Inch
ERP_productname - SQD TVS1HWA50X HWA TVSS, 120/240, 1 PH, 3 WIRE, 50KA

Packaging

1 ea

EAN

00785901293644

Part #

213012

Catalog #

TVS1HWA50X

Commercial reference

TVS1HWA50X

12-Digit UPC:

785901293644

Applications:

SUITABLE FOR USE IN SERVICE ENTRANCE LOCATIONS

Catalog Number:

TVS1HWA50X

Depths:

3.1 Inch

ERP_productname:

SQD TVS1HWA50X HWA TVSS, 120/240, 1 PH, 3 WIRE, 50KA

Enclosure:

NEMA 4X

Family Brand Name:

Square D

Heights:

9.4 Inch

Number of Phases:

1 Phase

Size:

3.1 IN,4.8 IN,9.4 IN

Sub Brand:

HWA

Type:

3-WIRE (ISOLATED GROUND),SURGE PROTECTION DEVICE

Voltage:

120/240 VAC

Widths:

4.8 in

SoneparProductId:

SKU_US_26736610

The HWA Series are surge suppressors and noise filters in a compact package. HWA surge protective devices are nipple mounted, parallel connected suppressors with different voltage configurations, including delta. TVS1HWA50X is single phase, three wire, 120/240VAC with an 50kA surge current. The surge suppressors use two pole spaces in a QO or Homeline load center, or NQ panelboard. The devices are NEMA 4X rated, allowing either indoor or outdoor installation. The devices comply with UL and CSA standards.
