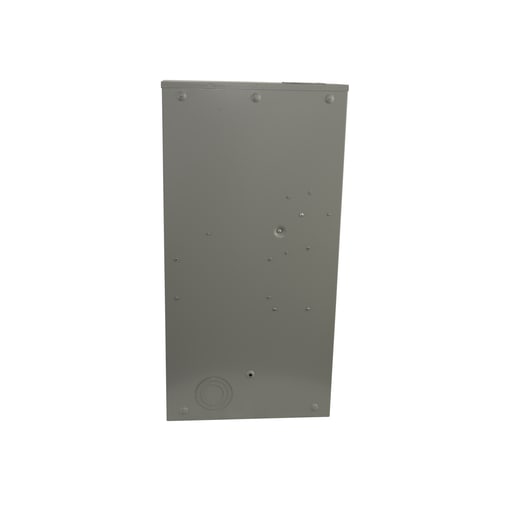

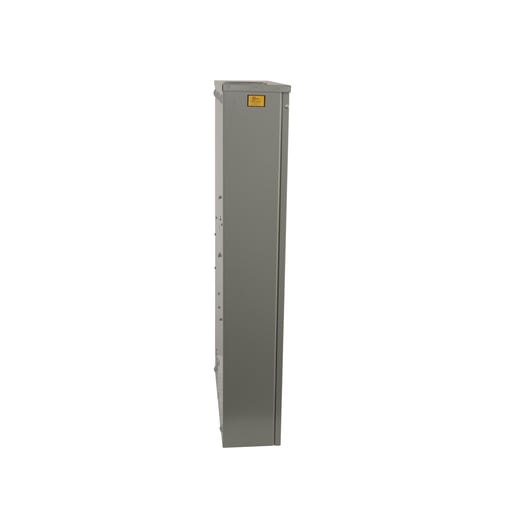

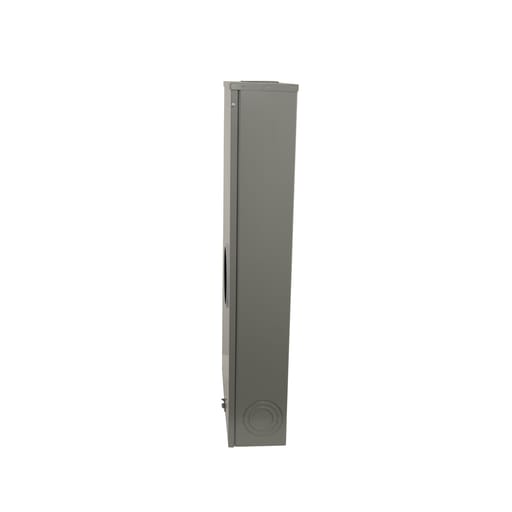

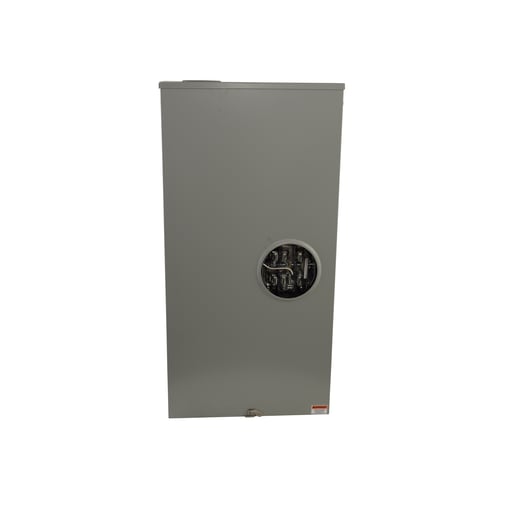

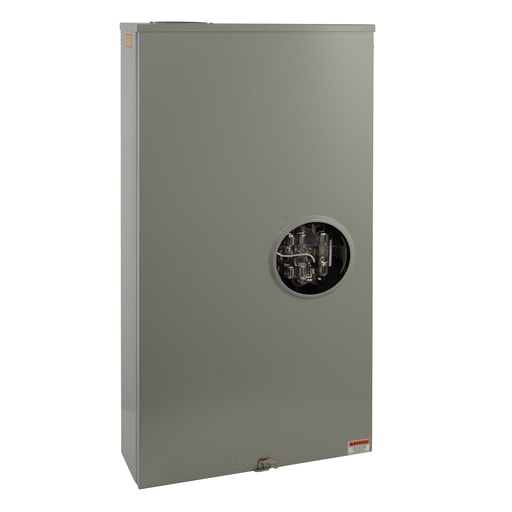

Square-D / Schneider - Square D UTH7330T 600 VAC 320 Amp 3-Phase Overhead/Underground Service Ringless Meter Socket

Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a higher rating with utility approval. Units are supplied with a bonded neutral. Units are supplied with a hub opening in top end wall which requires the use of a bolt on hub or a closing plate. This ringless meter socket has five jaws with lever bypass and jaw release. This meter socket is for three phase 3 wire systems up to 600 VAC. This meter socket has a 320 A rating. This unit can be for a feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure. The main lugs, the load lugs and the neutral lug will accept one 600 kcmil or two 350 kcmil copper or aluminum wires. This individual meter socket is UL Listed.
