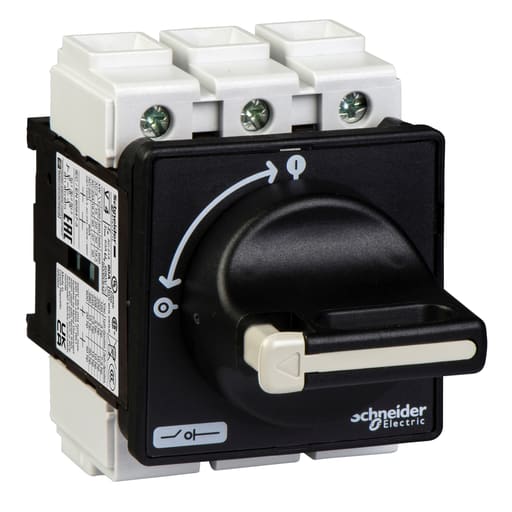

Square-D / Schneider - Square D VBF4 690 VAC 63 Amp 3-Pole Rotary Motor Disconnect Switch

Essential specifications

12-Digit UPC - 389110165985
Actuator - BLACK,ROTARY HANDLE
Amperage - 57 Amp AC-23 UE: 400 V
Applications - PREVENTIVE MAINTENANCE
Catalog Number - VBF4

Packaging

1 ea

EAN

03389110165982

Part #

164661

Catalog #

VBF4

Commercial reference

VBF4

12-Digit UPC:

389110165985

Actuator:

BLACK,ROTARY HANDLE

Amperage:

57 Amp AC-23 UE: 400 V

Applications:

PREVENTIVE MAINTENANCE

Catalog Number:

VBF4

Country of Origin:

Czechia

ERP_productname:

SQD VBF4 V SWITCH-ENCL(METAL)

Enclosure:

IP65-IP20 CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

83 mm

Interrupt Rating:

640 AIC

Number of Poles:

3 Pole

Size:

60 MM,60 X 60 MM,83 MM

Sub Brand:

TESYS VARIO,VBF

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 25-25 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 16-16 MMA. FLEXIBLE - WITH CABLE END

Type:

SWITCH DISCONNECTOR

Voltage:

690 Volt

Wattage:

18.5 kW 690 Volt AC-3)-15 kW 230...240 Volt AC-3)-22 kW 400...415 Volt AC-3)-30 kW 500 Volt AC-3)-30 kW 690 Volt AC-23 Amps)-37 kW 500 Volt AC-23 Amps)-18.5 kW 230...240 Volt AC-23 Amps)-30 kW 400...415 Volt AC-23 Amps)

Widths:

60 mm

SoneparProductId:

SKU_US_26300533

VBF4 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 30kW@400V AC-23. For door mounting with 4 screw fixing, it provides a black & grey operator with IP65 protection. VBF4 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 30kW@400V AC-23. It consists of a V4 Vario switch body and a padlockable black & grey operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V4 and a black & grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ4), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: VZ7; VZ9; VZ12; VZ20; VZ15; VZ4 - Cross Sell Products: KAF2PZ; V4 - Related Products: KAF2PZ; V4
