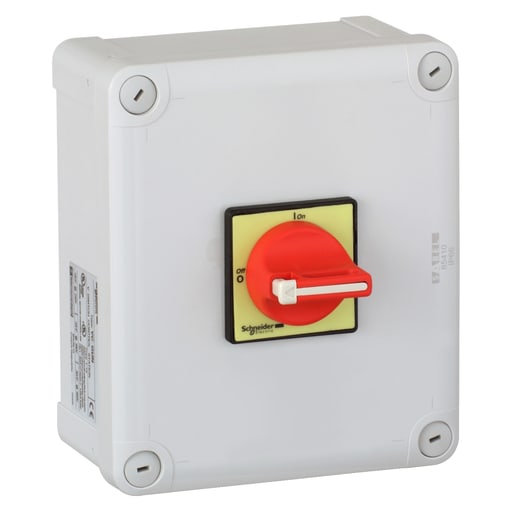

Square-D / Schneider - Square D VC3GUN 600 V 45 Amp 3-Pole Enclosed Motor Disconnect Switch

Essential specifications

12-Digit UPC - 389119413193
Actuator - Rotary handle;Red
Amperage - 41.5 Amp AC-23A)400 V
Applications - 10 HP 240 V, UL-20 HP 480 V, UL-30 HP 600 V, UL
Catalog Number - VC3GUN

Packaging

1 ea

EAN

03389119413190

Part #

239167

Catalog #

VC3GUN

Commercial reference

VC3GUN

12-Digit UPC:

389119413193

Actuator:

Rotary handle;Red

Amperage:

41.5 Amp AC-23A)400 V

Applications:

10 HP 240 V, UL-20 HP 480 V, UL-30 HP 600 V, UL

Catalog Number:

VC3GUN

Country of Origin:

Czechia

Depths:

132 mm

ERP_productname:

SQD VC3GUN TESYS VARIO ENCLOSED, EMERGENCY SWITCH DISCONNECTOR, 45A, UL/CSA

Enclosure:

NEMA 12

Family Brand Name:

Schneider Electric

Heights:

193 mm

Interrupt Rating:

500 AIC

Number of Poles:

3 Pole

Size:

60 x 60 mm;5.20 in (132 mm);7.60 in (193 mm);6.46 in (164 mm)

Sub Brand:

VC-GUN;TeSys VARIO

Tc Connection:

SCREW CLAMP TERMINALS 25-25 MMA. SOLID - WITH CABLE END- SCREW CLAMP TERMINALS 16-16 MMA. FLEXIBLE

Type:

Enclosed emergency stop switch disconnector

Voltage:

690 Volt

Wattage:

22 kW 400 Volt AC-23)-18.5 kW 400 Volt AC-3)

Widths:

164 mm

SoneparProductId:

SKU_US_27219268

VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 30HP@600V. It provides an IP65 / NEMA type 12 enclosure, V3 Vario switch disconnector and red & yellow operator. VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 30HP@600V. It includes a V3 Vario switch disconnector rated 45A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V3 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n. 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
