Square-D / Schneider - Square D VCCDN20 690 VAC 16 Amp 3-Pole Motor Disconnect Switch

Essential specifications

12-Digit UPC - 389110759955
Actuator - Rotary handle;Red
Amperage - 11 Amp AC-23)400 V
Applications - MAIN SWITCH DISCONNECTOR
Catalog Number - VCCDN20

Packaging

1 ea

EAN

03389110759952

Part #

125132

Catalog #

VCCDN20

Commercial reference

VCCDN20

12-Digit UPC:

389110759955

Actuator:

Rotary handle;Red

Amperage:

11 Amp AC-23)400 V

Applications:

MAIN SWITCH DISCONNECTOR

Catalog Number:

VCCDN20

Country of Origin:

Czechia

ERP_productname:

SQD VCCDN20 MAIN EMERG.SWITCH

Enclosure:

IP65

Family Brand Name:

Schneider Electric

Heights:

60 mm

Interrupt Rating:

200 kAIC

Number of Poles:

3 Pole

Size:

60 x 60 mm;2.36 in (60 mm);2.36 in (60 mm)

Sub Brand:

VCCDN;TeSys Mini-VARIO

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 4-4 MMA. FLEXIBLE - WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 4-4 MMA. SOLID

Type:

Emergency stop switch disconnector

Voltage:

600 VAC

Wattage:

4 kW 230...240 Volt AC-23 Amps)-5.5 kW 400...415 Volt AC-23 Amps)-7.5 kW 500 Volt AC-23 Amps)-11 kW 690 Volt AC-23 Amps)-3 kW 230...240 Volt AC-3)-4 kW 400...415 Volt AC-3)-5.5 kW 500 Volt AC-3)-5.5 kW 690 Volt AC-3)

Widths:

60 mm

SoneparProductId:

SKU_US_26287065

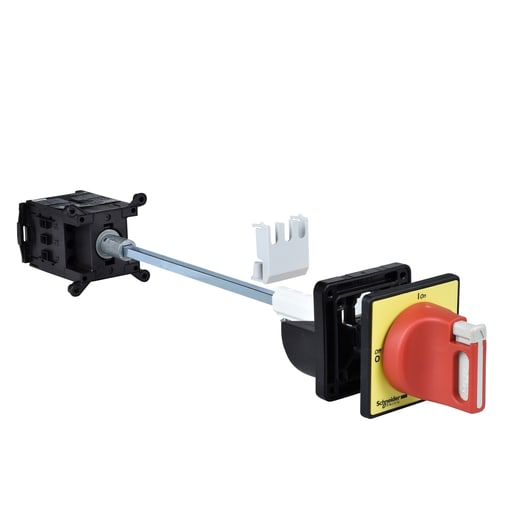

VCCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 5.5kW@400V AC-23. For enclosure back mounting, it provides a red & yellow operator and extension shaft with IP65 protection. VCCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 5.5kW@400V AC-23. It consists of a VZ20 Vario switch body to be mounted on the back of an enclosure, an extension shaft, and a padlockable red & yellow operator with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for back mounting. Composed with a switch body VZ20, an extension shaft and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , main (VZN20), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: VZN11; VZN05; VZN20; VZN06 - Cross Sell Products: KCD1PZ; KZ32; VN20; VZN17 - Related Products: KCD1PZ; KZ32; VN20; VZN17
