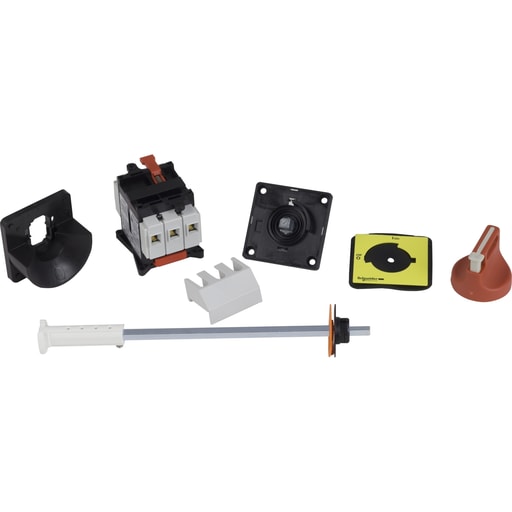

Square-D / Schneider - Square D VCCF1 690 VAC 20 Amp 3-Pole Motor Disconnect Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110449337
Actuator - Rotary handle;Red
Amperage - 21.8 Amp AC-23 UE: 400 V
Applications - MAIN SWITCH DISCONNECTOR
Catalog Number - VCCF1
Packaging
1 ea
EAN
03389110449334
Part #
127959
Catalog #
VCCF1
Commercial reference
VCCF1
12-Digit UPC:
389110449337
Actuator:
Rotary handle;Red
Amperage:
21.8 Amp AC-23 UE: 400 V
Applications:
MAIN SWITCH DISCONNECTOR
Catalog Number:
VCCF1
Country of Origin:
Czechia
ERP_productname:
SQD VCCF1 LOADBREAK SW
Enclosure:
IP65-IP20 CONFORMING TO IEC 60529
Family Brand Name:
Schneider Electric
Heights:
74 mm
Interrupt Rating:
250 AIC
Number of Poles:
3 Pole
Size:
60 x 60 mm;2.91 in (74 mm);2.36 in (60 mm)
Sub Brand:
VCCF;TeSys VARIO
Tc Connection:
POWER CIRCUIT SCREW CLAMP TERMINALS 10-10 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 6-6 MMA. FLEXIBLE - WITH CABLE END
Type:
Emergency stop switch disconnector
Voltage:
690 Volt
Wattage:
11 kW 500 Volt AC-23 Amps)-15 kW 690 Volt AC-23 Amps)-7.5 kW 500 Volt AC-3)-7.5 kW 690 Volt AC-3)-1.5 kW 230...240 Volt AC-3)-5.5 kW 230...240 Volt AC-23 Amps)-11 kW 400...415 Volt AC-23 Amps)-7.5 kW 400...415 Volt AC-3)
Widths:
60 mm
SoneparProductId:
SKU_US_70001841
