Square-D / Schneider - Square D VCCF2 690 VAC 25 Amp 3-Pole Motor Disconnect Switch

Essential specifications

12-Digit UPC - 389110449320
Actuator - RED,ROTARY HANDLE
Amperage - 29 Amp AC-23 UE: 400 V
Applications - MAIN SWITCH DISCONNECTOR
Catalog Number - VCCF2

Packaging

1 ea

EAN

03389110449327

Part #

127964

Catalog #

VCCF2

Commercial reference

VCCF2

12-Digit UPC:

389110449320

Actuator:

RED,ROTARY HANDLE

Amperage:

29 Amp AC-23 UE: 400 V

Applications:

MAIN SWITCH DISCONNECTOR

Catalog Number:

VCCF2

Country of Origin:

Czechia

ERP_productname:

SQD VCCF2 25A LOADBREAK SW KIT

Enclosure:

IP65-IP20 CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

74 mm

Interrupt Rating:

320 AIC

Number of Poles:

3 Pole

Size:

60 MM,60 X 60 MM,74 MM

Sub Brand:

TESYS VARIO,VCCF

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 10-10 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 6-6 MMA. FLEXIBLE - WITH CABLE END

Type:

EMERGENCY STOP SWITCH DISCONNECTOR

Voltage:

690 Volt

Wattage:

11 kW 690 Volt AC-3)-15 kW 690 Volt AC-23 Amps)-11 kW 400...415 Volt AC-3)-15 kW 500 Volt AC-3)-18.5 kW 500 Volt AC-23 Amps)-5.5 kW 230...240 Volt AC-3)-7.5 kW 230...240 Volt AC-23 Amps)-15 kW 400...415 Volt AC-23 Amps)

Widths:

60 mm

SoneparProductId:

SKU_US_25489084

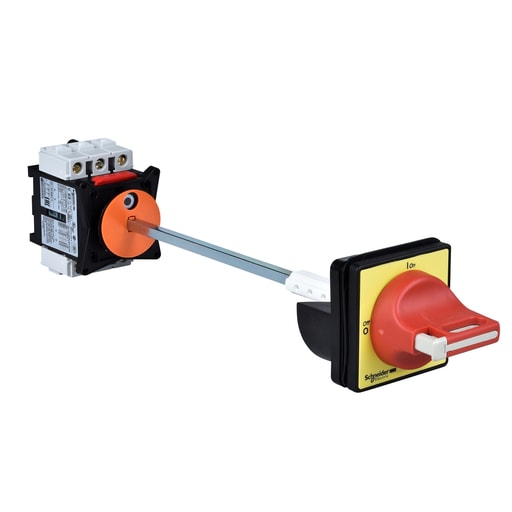

VCCF2 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 40A 690V, it is used for main and emergency stop switching in motor applications up to 15kW@400V AC-23. Composed of a V2 switch body, extension shaft, red padlockable handle, and a yellow 60x60mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Possible distance between back of enclosure and door 300-330mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: VZ8; VZ11; VZ7; VZ14; VZ20; VZ2 - Cross Sell Products: KCF1PZ; KZ32; V2; VZN17 - Related Products: KCF1PZ; KZ32; V2; VZN17
