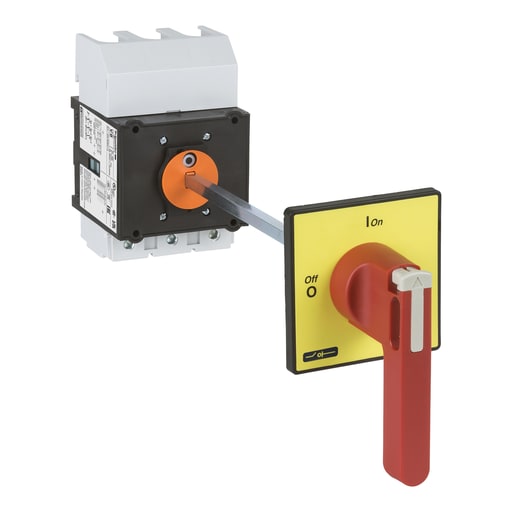

Square-D / Schneider - Square D VCCF5 690 VAC 100 Amp 3-Pole Motor Disconnect Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110804655
Actuator - Rotary handle;Red
Amperage - 68.5 Amp AC-23 UE: 400 V
Applications - MAIN SWITCH DISCONNECTOR
Catalog Number - VCCF5
Packaging
1 ea
EAN
03389110804652
Part #
215813
Catalog #
VCCF5
Commercial reference
VCCF5
12-Digit UPC:
389110804655
Actuator:
Rotary handle;Red
Amperage:
68.5 Amp AC-23 UE: 400 V
Applications:
MAIN SWITCH DISCONNECTOR
Catalog Number:
VCCF5
Country of Origin:
Czechia
ERP_productname:
SQD VCCF5 SWITCH KIT
Enclosure:
IP65-IP20 CONFORMING TO IEC 60529
Family Brand Name:
Schneider Electric
Heights:
125 mm
Interrupt Rating:
1 kAIC
Number of Poles:
3 Pole
Size:
90 x 90 mm;4.92 in (125 mm);3.54 in (90 mm)
Sub Brand:
VCCF;TeSys VARIO
Tc Connection:
POWER CIRCUIT SCREW CLAMP TERMINALS 95-95 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 70-70 MMA. FLEXIBLE - WITH CABLE END
Type:
Emergency stop switch disconnector
Voltage:
690 Volt
Wattage:
22 kW 230...240 Volt AC-3)-30 kW 400...415 Volt AC-3)-30 kW 690 Volt AC-3)-37 kW 500 Volt AC-3)-37 kW 690 Volt AC-23 Amps)-45 kW 500 Volt AC-23 Amps)-22 kW 230...240 Volt AC-23 Amps)-37 kW 400...415 Volt AC-23 Amps)
Widths:
90 mm
SoneparProductId:
SKU_US_25467121
