Square-D / Schneider - Square D VCD1 690 VAC 20 Amp 3-Pole Motor Disconnect Switch

Essential specifications

12-Digit UPC - 389110724885
Actuator - RED,ROTARY HANDLE
Amperage - 21.8 Amp AC-23 UE: 400 V
Applications - MAIN SWITCH DISCONNECTOR
Catalog Number - VCD1

Packaging

1 ea

EAN

03389110724882

Part #

184391

Catalog #

VCD1

Commercial reference

VCD1

12-Digit UPC:

389110724885

Actuator:

RED,ROTARY HANDLE

Amperage:

21.8 Amp AC-23 UE: 400 V

Applications:

MAIN SWITCH DISCONNECTOR

Catalog Number:

VCD1

Country of Origin:

Czechia

ERP_productname:

SQD VCD1 20AMP SW.KIT W/SINGLE HOLE MTG.RED/YELLOW OPER

Enclosure:

IP65-IP20 CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

74 mm

Interrupt Rating:

250 AIC

Number of Poles:

3 Pole

Size:

60 MM,60 X 60 MM,74 MM

Sub Brand:

TESYS VARIO,VCD

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 10-10 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 6-6 MMA. FLEXIBLE - WITH CABLE END

Type:

EMERGENCY STOP SWITCH DISCONNECTOR

Voltage:

690 Volt

Wattage:

11 kW 500 Volt AC-23 Amps)-15 kW 690 Volt AC-23 Amps)-7.5 kW 500 Volt AC-3)-7.5 kW 690 Volt AC-3)-1.5 kW 230...240 Volt AC-3)-5.5 kW 230...240 Volt AC-23 Amps)-11 kW 400...415 Volt AC-23 Amps)-7.5 kW 400...415 Volt AC-3)

Widths:

60 mm

SoneparProductId:

SKU_US_26648544

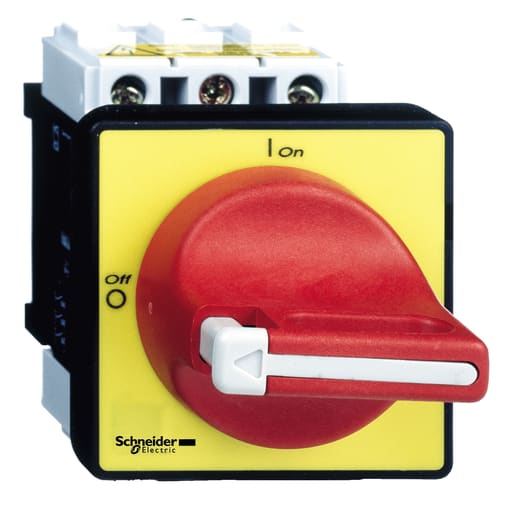

VCD1 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 11KW@400V AC-23. For enclosure door mounting, it provides a red & yellow operator/yellow plate with IP65 protection. VCD1 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 11KW@400V AC-23. It consists of a V1 Vario switch body and a padlockable red & yellow operator to be mounted on door with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V1 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ1), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: VZ11; VZ7; VZ14; VZ20; VZ1 - Cross Sell Products: KCD1PZ; V1 - Related Products: KCD1PZ; V1
