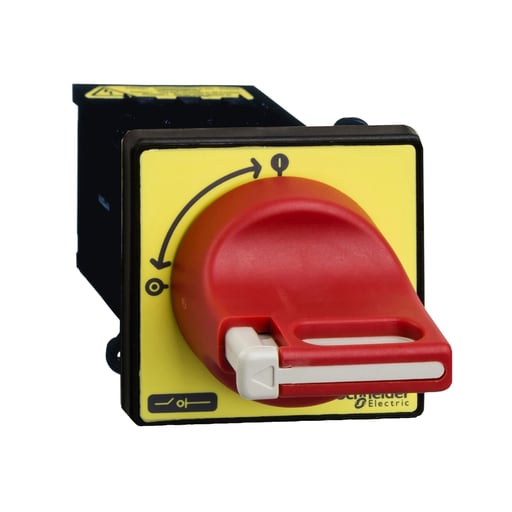

Square-D / Schneider - Square D VCDN20 690 VAC 16 Amp 3-Pole Motor Disconnect Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110759917
Actuator - Rotary handle;Red
Amperage - 11 Amp AC-23)400 V
Applications - MAIN SWITCH DISCONNECTOR
Catalog Number - VCDN20
Packaging
1 ea
EAN
03389110759914
Part #
252999
Catalog #
VCDN20
Commercial reference
VCDN20
12-Digit UPC:
389110759917
Actuator:
Rotary handle;Red
Amperage:
11 Amp AC-23)400 V
Applications:
MAIN SWITCH DISCONNECTOR
Catalog Number:
VCDN20
Country of Origin:
Czechia
ERP_productname:
SQD VCDN20 MINI MAIN EMERG. SWITCH
Enclosure:
IP65
Family Brand Name:
Schneider Electric
Heights:
60 mm
Interrupt Rating:
200 kAIC
Number of Poles:
3 Pole
Size:
60 x 60 mm;2.36 in (60 mm);2.36 in (60 mm)
Sub Brand:
VCDN;TeSys Mini-VARIO
Tc Connection:
POWER CIRCUIT SCREW CLAMP TERMINALS 4-4 MMA. FLEXIBLE - WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 4-4 MMA. SOLID
Type:
Emergency stop switch disconnector
Voltage:
600 VAC
Wattage:
4 kW 230...240 Volt AC-23 Amps)-5.5 kW 400...415 Volt AC-23 Amps)-7.5 kW 500 Volt AC-23 Amps)-11 kW 690 Volt AC-23 Amps)-3 kW 230...240 Volt AC-3)-4 kW 400...415 Volt AC-3)-5.5 kW 500 Volt AC-3)-5.5 kW 690 Volt AC-3)
Widths:
60 mm
SoneparProductId:
SKU_US_26887979
