Square-D / Schneider - Square D VCF02GE 690 VAC 10 Amp 3-Pole Enclosed Motor Disconnect Switch

Essential specifications

12-Digit UPC - 389110194046
Actuator - Rotary handle;Red
Amperage - 8.1 Amp AC-23A)400 V
Applications - ENCLOSED SWITCH DISCONNECTOR
Catalog Number - VCF02GE

Packaging

1 ea

EAN

03389110194043

Part #

125378

Catalog #

VCF02GE

Commercial reference

VCF02GE

12-Digit UPC:

389110194046

Actuator:

Rotary handle;Red

Amperage:

8.1 Amp AC-23A)400 V

Applications:

ENCLOSED SWITCH DISCONNECTOR

Catalog Number:

VCF02GE

Country of Origin:

Czechia

Depths:

131 mm

ERP_productname:

SQD VCF02GE 10AMP SW.W/RED/YELLOW OPER.IN NON-METALLIC ENC

Enclosure:

IP65 CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

146 mm

Interrupt Rating:

120 AIC

Number of Poles:

3 Pole

Size:

60 x 60 mm;5.16 in (131 mm);5.75 in (146 mm);3.54 in (90 mm)

Sub Brand:

VCF;TeSys VARIO

Tc Connection:

SCREW CLAMP TERMINALS 10-10 MMA. SOLID- SCREW CLAMP TERMINALS 6-6 MMA. FLEXIBLE - WITH CABLE END

Type:

Enclosed emergency stop switch disconnector

Voltage:

690 Volt

Wattage:

4 kW 400 Volt AC-23)-3 kW 400 Volt AC-3)

Widths:

90 mm

SoneparProductId:

SKU_US_26270418

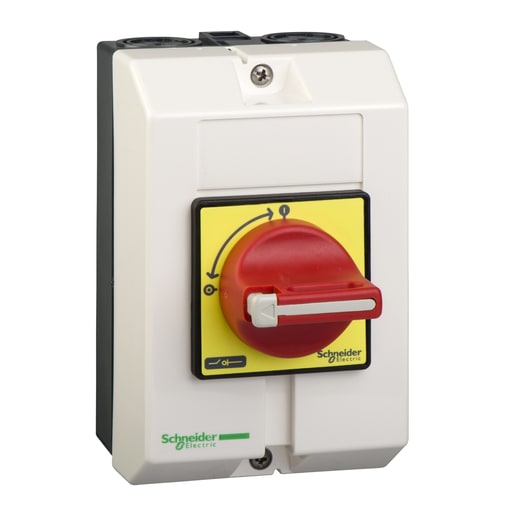

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 10A 690V, for main and emergency stop switching in motor applications AC-23 up to 4kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V02 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: VZ11; VZ7; VZ14; VZ20; VZ02 - Cross Sell Products: GV2ME08; GV2ME10; GV2P08; GV2P10
