Square-D / Schneider - Square D VCF3 690 VAC 45 Amp 3-Pole Motor Disconnect Switch

Essential specifications

12-Digit UPC - 389110165992
Actuator - Rotary handle;Red
Amperage - 41.5 Amp AC-23 UE: 400 V
Applications - MAIN SWITCH DISCONNECTOR
Catalog Number - VCF3

Packaging

1 ea

EAN

03389110165999

Part #

127981

Catalog #

VCF3

Commercial reference

VCF3

12-Digit UPC:

389110165992

Actuator:

Rotary handle;Red

Amperage:

41.5 Amp AC-23 UE: 400 V

Applications:

MAIN SWITCH DISCONNECTOR

Catalog Number:

VCF3

Country of Origin:

Czechia

ERP_productname:

SQD VCF3 45/63A VARIO SWITCH + HANDLE ASSY

Enclosure:

IP65-IP20 CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

83 mm

Interrupt Rating:

500 AIC

Number of Poles:

3 Pole

Size:

60 x 60 mm;3.27 in (83 mm);2.36 in (60 mm)

Sub Brand:

VCF;TeSys VARIO

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 25-25 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 16-16 MMA. FLEXIBLE - WITH CABLE END

Type:

Emergency stop switch disconnector

Voltage:

690 Volt

Wattage:

11 kW 230...240 Volt AC-3)-22 kW 500 Volt AC-3)-22 kW 690 Volt AC-23 Amps)-30 kW 500 Volt AC-23 Amps)-18.5 kW 400...415 Volt AC-3)-18.5 kW 690 Volt AC-3)-15 kW 230...240 Volt AC-23 Amps)-22 kW 400...415 Volt AC-23 Amps)

Widths:

60 mm

SoneparProductId:

SKU_US_26829227

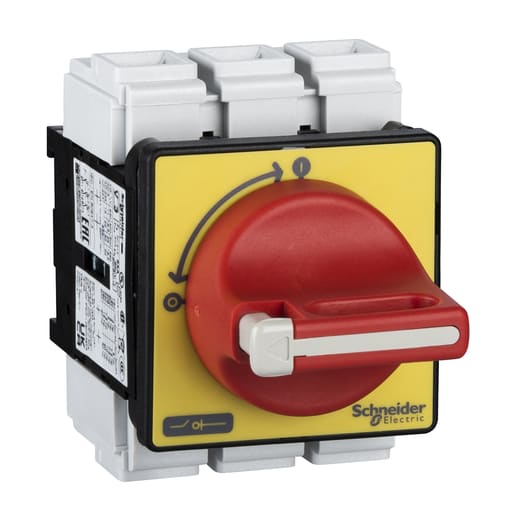

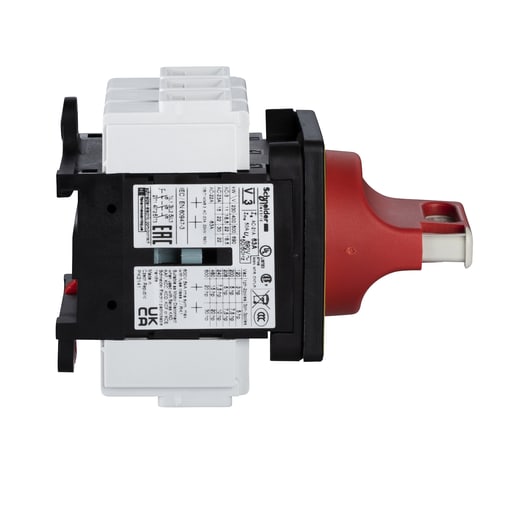

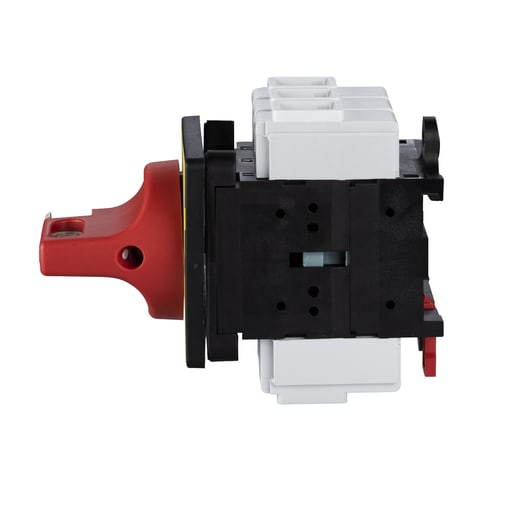

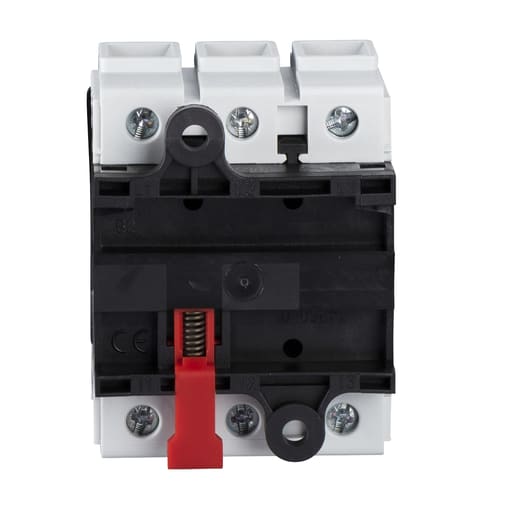

VCF3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 22kW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 22kW@400V AC-23. It consists of a V3 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V3 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: VZ7; VZ9; VZ12; VZ20; VZ15; VZ3 - Cross Sell Products: KCF2PZ; V3 - Related Products: KCF2PZ; V3
