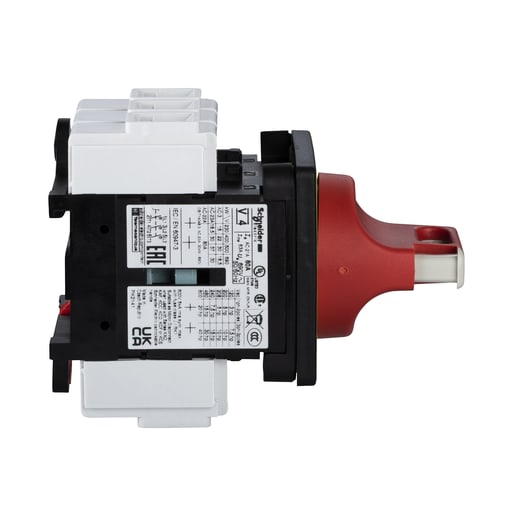

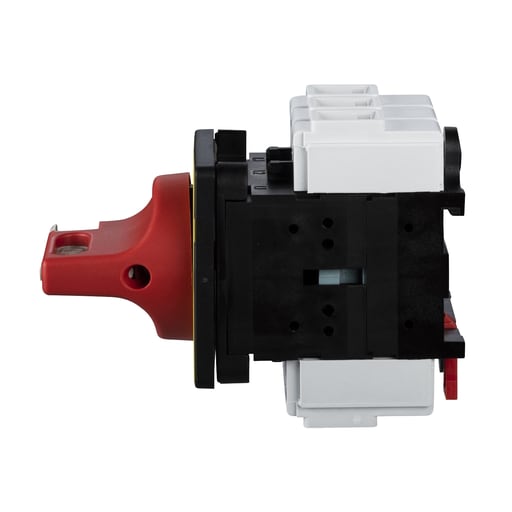

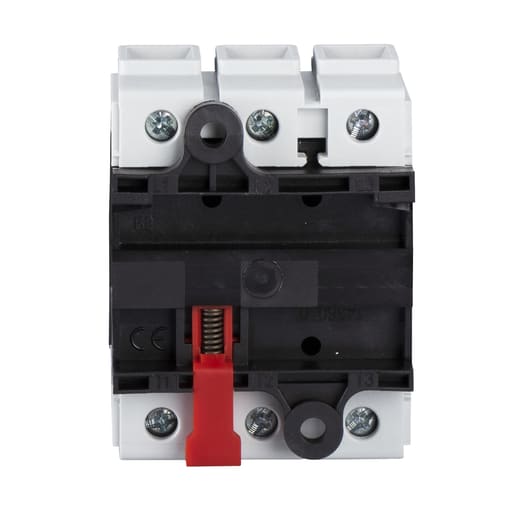

Square-D / Schneider - Square D VCF4 690 VAC 63 Amp 3-Pole Motor Disconnect Switch

Essential specifications

12-Digit UPC - 389110166005
Actuator - Rotary handle;Red
Amperage - 57 Amp AC-23 UE: 400 V
Applications - MAIN SWITCH DISCONNECTOR
Catalog Number - VCF4

Packaging

1 ea

EAN

03389110166002

Part #

127985

Catalog #

VCF4

Commercial reference

VCF4

12-Digit UPC:

389110166005

Actuator:

Rotary handle;Red

Amperage:

57 Amp AC-23 UE: 400 V

Applications:

MAIN SWITCH DISCONNECTOR

Catalog Number:

VCF4

Country of Origin:

Czechia

ERP_productname:

SQD VCF4 63/80A VAR MTR CNTRL SW

Enclosure:

IP65-IP20 CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

83 mm

Interrupt Rating:

640 AIC

Number of Poles:

3 Pole

Size:

60 x 60 mm;3.27 in (83 mm);2.36 in (60 mm)

Sub Brand:

VCF;TeSys VARIO

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 25-25 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 16-16 MMA. FLEXIBLE - WITH CABLE END

Type:

Emergency stop switch disconnector

Voltage:

690 Volt

Wattage:

18.5 kW 690 Volt AC-3)-15 kW 230...240 Volt AC-3)-22 kW 400...415 Volt AC-3)-30 kW 500 Volt AC-3)-30 kW 690 Volt AC-23 Amps)-37 kW 500 Volt AC-23 Amps)-18.5 kW 230...240 Volt AC-23 Amps)-30 kW 400...415 Volt AC-23 Amps)

Widths:

60 mm

SoneparProductId:

SKU_US_26274606

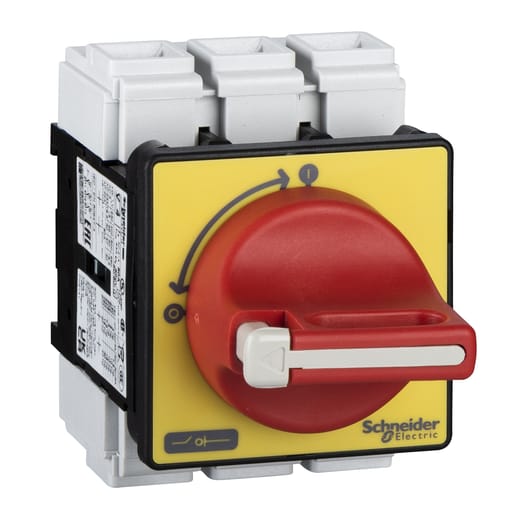

VCF4 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 30kW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF4 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 30kW@400V AC-23. It consists of a V4 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V4 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ4), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: VZ7; VZ9; VZ12; VZ20; VZ15; VZ4 - Cross Sell Products: KCF2PZ; V4 - Related Products: KCF2PZ; V4
