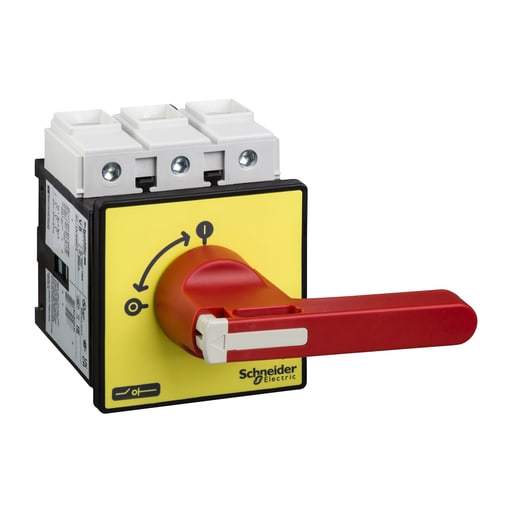

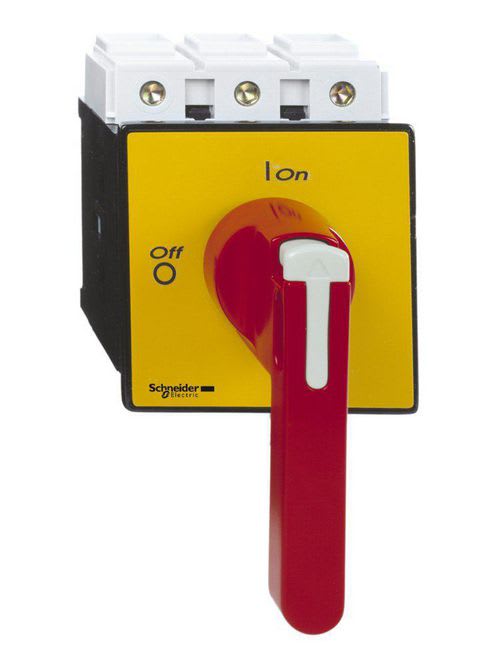

Square-D / Schneider - Square D VCF6 690 VAC 115 Amp 3-Pole Motor Disconnect Switch

Essential specifications

12-Digit UPC - 389110804648
Actuator - RED,ROTARY HANDLE
Amperage - 83 Amp AC-23 UE: 400 V
Applications - MAIN SWITCH DISCONNECTOR
Catalog Number - VCF6

Packaging

1 ea

EAN

03389110804645

Part #

393375

Catalog #

VCF6

Commercial reference

VCF6

12-Digit UPC:

389110804648

Actuator:

RED,ROTARY HANDLE

Amperage:

83 Amp AC-23 UE: 400 V

Applications:

MAIN SWITCH DISCONNECTOR

Catalog Number:

VCF6

Country of Origin:

Czechia

ERP_productname:

SQD VCF6 SWITCH DISCONNECTOR,TESYS CONTROL,FOR ON/EMERGENCY STOP,175A,4 SCREWS FIXING,FOR MOUNTING ON DOOR

Enclosure:

IP65-IP20 CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

125 mm

Interrupt Rating:

1.4 kAIC

Number of Poles:

3 Pole

Size:

125 MM,90 MM,90 X 90 MM

Sub Brand:

TESYS VARIO,VCF

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 95-95 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 70-70 MMA. FLEXIBLE - WITH CABLE END

Type:

EMERGENCY STOP SWITCH DISCONNECTOR

Voltage:

690 Volt

Wattage:

30 kW 230...240 Volt AC-3)-37 kW 400...415 Volt AC-3)-37 kW 690 Volt AC-3)-45 kW 500 Volt AC-3)-45 kW 690 Volt AC-23 Amps)-55 kW 500 Volt AC-23 Amps)-30 kW 230...240 Volt AC-23 Amps)-45 kW 400...415 Volt AC-23 Amps)

Widths:

90 mm

SoneparProductId:

SKU_US_26540487

VCF6 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 45kW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF6 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 45kW@400V AC-23. It consists of a V6 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V6 and a long red handle with yellow plate, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , neutral (VZ13), earthing (VZ16), auxiliary (VZ7, VZ20). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: VZ7; VZ20; VZ10; VZ16 - Cross Sell Products: KCF3PZ; V6 - Related Products: KCF3PZ; V6
