Square-D / Schneider - Square D VCFN20GE 690 VAC 16 Amp 3-Pole Enclosed Motor Disconnect Switch

Essential specifications

12-Digit UPC - 785901770510
Actuator - RED,ROTARY HANDLE
Amperage - 11 Amp AC-23A)400 V
Applications - ENCLOSED SWITCH DISCONNECTOR
Catalog Number - VCFN20GE

Packaging

1 ea

EAN

03389110759990

Part #

113893

Catalog #

VCFN20GE

Commercial reference

VCFN20GE

12-Digit UPC:

785901770510

Actuator:

RED,ROTARY HANDLE

Amperage:

11 Amp AC-23A)400 V

Applications:

ENCLOSED SWITCH DISCONNECTOR

Catalog Number:

VCFN20GE

Country of Origin:

Czechia

Depths:

106 mm

ERP_productname:

SQD VCFN20GE 16A MAIN EMERG. SWITCH ENCLOSURE

Enclosure:

IP65

Family Brand Name:

Schneider Electric

Heights:

131 mm

Interrupt Rating:

200 AIC

Number of Poles:

3 Pole

Size:

106 MM,131 MM,60 X 60 MM,82.5 MM

Sub Brand:

TESYS MINI-VARIO,VCFN

Tc Connection:

CONTROL CIRCUIT CONNECTOR 4-4 MMA. FLEXIBLE WITH CABLE END-CONTROL CIRCUIT CONNECTOR 4-4 MMA. SOLID

Type:

EMERGENCY STOP SWITCH DISCONNECTOR

Voltage:

690 Volt

Wattage:

5.5 kW 400 Volt AC-23)-4 kW 400 Volt AC-3)

Widths:

82.5 mm

SoneparProductId:

SKU_US_26895197

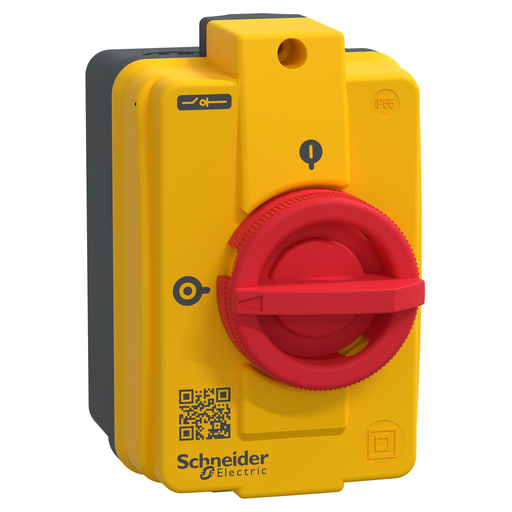

VCFN20GE is a direct-on-line TeSys enclosed starter from Schneider Electric. Enclosure fitted with a yellow cover, red padlockable rotary handle, and a 3-pole VN20 switch body with 2 possible add-on module attachments. Rated The 16A 690V, it is used for main and emergency stop switching in motor applications up to 5.5kW@400V AC-23. Cabling through 2 cable glands on top and bottom, it provides IP55 protection. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: VZN11; VZN05; VZN20; VZN06 - Cross Sell Products: VN20
