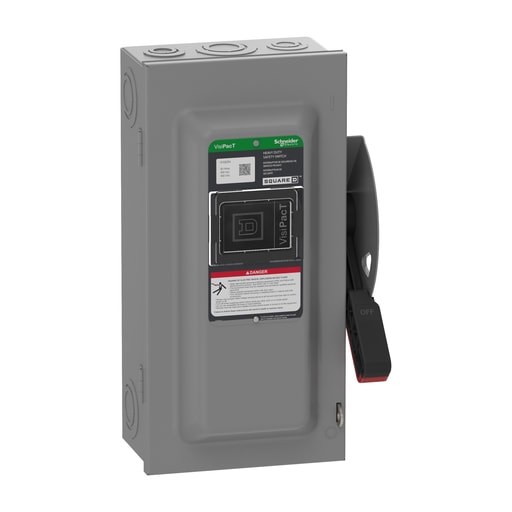

Square-D / Schneider - Square D VH362N Safety Switch, Heavy Duty, Fused, Viewing Window, Type 1, 600V, 60A, 3 Pole, Neutral Installed

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606485893931

  • Amperage - 60 Amp

  • Applications - HEAVY DUTY

  • Catalog Number - VH362N

  • Conductor Size - 12-3 AWG (AL)/14-3 AWG (CU)

Packaging

  • 1 ea

EAN

03606485893938

Part #

306382

Catalog #

VH362N

Commercial reference

VH362N

12-Digit UPC:

606485893931

Amperage:

60 Amp

Applications:

HEAVY DUTY

Catalog Number:

VH362N

Conductor Size:

12-3 AWG (AL)/14-3 AWG (CU)

Country of Origin:

USA

Current:

60 Amp

Depths:

7.04 Inch

Disconnect Type:

Fusible disconnect

ERP_productname:

SQD VH362N SAFETY SWITCH, HEAVY DUTY, FUSED, VIEWING WINDOW, TYPE 1, 600V, 60A, 3 POLE, NEUTRAL INSTALLED

Enclosure:

1

Enclosure Material:

Steel

Enclosure Rating:

1

Family Brand Name:

Square D

Heights:

18.184 Inch

Material:

Steel

Mounting Type:

Surface

NEMA Size:

1

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Size:

10.5 IN,17.5 IN,6.38 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

AWG 14...AWG 3 COPPER-AWG 12...AWG 3 ALUMINIUM,LUGS

Type:

SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT

Voltage:

600 Volt

Widths:

8.91 in

Wire Size:

AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium

SoneparProductId:

SKU_US_459029468

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 60A with a voltage 600 VAC and 600 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 1 rated with a steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 4-wire configuration with 3 poles and one solid neutral that is factory installed. The disconnect comes with standard lugs that are not grounded but equipment grounding kits can be used make lugs grounded. The wire range for this switch is AWG 12...AWG 3 aluminium and AWG 14...AWG 3 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: EIK031; EIK032; FPK03; GTK03; LOGK1; RFK03L; SS03
