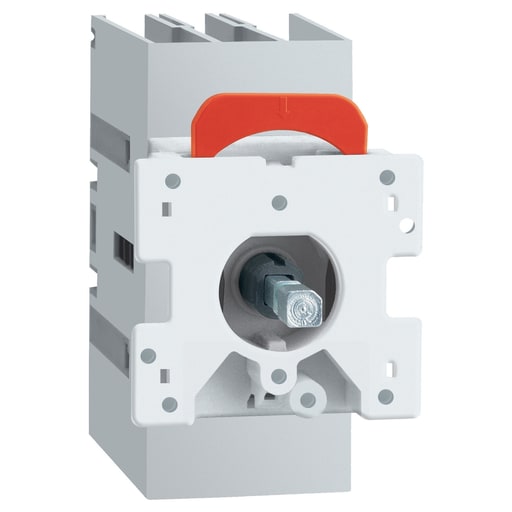

Square-D / Schneider - Square D VLS3P025D1 DISCONNECT SWITCH, 3 POLE 25A UL508 D.S. DOOR MOUNT
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606481156528
Amperage - 25 Amp AC-21A UE: 400 V-25 Amp UE: 600 V UL 508-25 Amp AC-21A UE: 500 V-25 Amp AC-21A UE: 690 V-25 Amp AC-22A UE: 400 V-25 Amp AC-22A UE: 500 V-25 Amp AC-22A UE: 690 V-25 Amp AC-23A UE: 400 V-25 Amp AC-23A UE: 500 V-25 Amp AC-23A UE: 690 V
Catalog Number - VLS3P025D1
Color - Gray
Country of Origin - Italy
Packaging
1 ea
EAN
03606481156525
Part #
331691
Catalog #
VLS3P025D1
Commercial reference
VLS3P025D1
12-Digit UPC:
606481156528
Amperage:
25 Amp AC-21A UE: 400 V-25 Amp UE: 600 V UL 508-25 Amp AC-21A UE: 500 V-25 Amp AC-21A UE: 690 V-25 Amp AC-22A UE: 400 V-25 Amp AC-22A UE: 500 V-25 Amp AC-22A UE: 690 V-25 Amp AC-23A UE: 400 V-25 Amp AC-23A UE: 500 V-25 Amp AC-23A UE: 690 V
Catalog Number:
VLS3P025D1
Color:
Gray
Country of Origin:
Italy
Depths:
78 mm
ERP_productname:
SQD VLS3P025D1 DISCONNECT SWITCH, TESYS VLS, BODY SWITCH, 25A, 15HP AT 480VAC, UL508,THREE PHASE, 5KA SCCR, SIZE 1, DOOR MOUNT
Family Brand Name:
Schneider Electric
Heights:
73 mm
Interrupt Rating:
37.5, 75, 200 AIC
Number of Poles:
3 Pole
Size:
3.07 in
Sub Brand:
VLS3P;TeSys VARIO LS
Tc Connection:
POWER CIRCUIT SCREW CLAMP TERMINALS 10-10 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 16-16 MMA. FLEXIBLE - WITHOUT CABLE END
Type:
Switch body
Voltage:
690 Volt
Wattage:
22 kW 690 Volt AC-23 Amps)-11 kW 400 Volt AC-23 Amps)-15 kW 500 Volt AC-23 Amps)
Widths:
45 mm
SoneparProductId:
SKU_US_31460026
