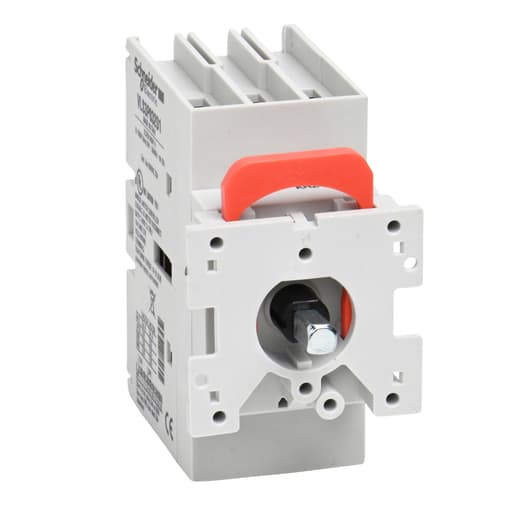

Square-D / Schneider - Square D VLS3P032D1 DISCONNECT SWITCH, 3 POLE 32A UL508 D.S. DOOR MOUNT

Essential specifications

12-Digit UPC - 606481156535
Amperage - 25 Amp AC-23A UE: 500 V-32 Amp UE: 600 V UL 508-25 Amp AC-23A UE: 690 V-32 Amp AC-21A UE: 400 V-32 Amp AC-21A UE: 500 V-32 Amp AC-21A UE: 690 V-32 Amp AC-22A UE: 400 V-32 Amp AC-22A UE: 500 V-32 Amp AC-22A UE: 690 V-32 Amp AC-23A UE: 400 V
Catalog Number - VLS3P032D1
Color - Gray
Country of Origin - Italy

Packaging

1 ea

EAN

03606481156532

Part #

115885

Catalog #

VLS3P032D1

Commercial reference

VLS3P032D1

12-Digit UPC:

606481156535

Amperage:

25 Amp AC-23A UE: 500 V-32 Amp UE: 600 V UL 508-25 Amp AC-23A UE: 690 V-32 Amp AC-21A UE: 400 V-32 Amp AC-21A UE: 500 V-32 Amp AC-21A UE: 690 V-32 Amp AC-22A UE: 400 V-32 Amp AC-22A UE: 500 V-32 Amp AC-22A UE: 690 V-32 Amp AC-23A UE: 400 V

Catalog Number:

VLS3P032D1

Color:

Gray

Country of Origin:

Italy

Depths:

78 mm

ERP_productname:

SQD VLS3P032D1 3 POLE 32A UL508 D.S. DOOR MOUNT

Family Brand Name:

Schneider Electric

Heights:

73 mm

Interrupt Rating:

48, 96, 256 AIC

Number of Poles:

3 Pole

Size:

3.07 in

Sub Brand:

VLS3P;TeSys VARIO LS

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 10-10 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 16-16 MMA. FLEXIBLE - WITHOUT CABLE END

Type:

Switch body

Voltage:

690 Volt

Wattage:

22 kW 690 Volt AC-23 Amps)-18.5 kW 500 Volt AC-23 Amps)-15 kW 400 Volt AC-23 Amps)

Widths:

45 mm

SoneparProductId:

SKU_US_31450697

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 32A disconnect switch has 3 normally open poles and mounts directly in the enclosure door. Per UL and CSA this this disconnect switch has a 2 HP rating at 120 VAC and a 5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 10 HP rating at 200 to 208 VAC and 240 VAC, a 20 HP rating at 480 VAC and a 20 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 5 kA at 600 V short circuit current rating (SCCR) with a 30A Type RK5 fuse maximum. Per IEC requirements, this disconnect switch has a 15 kW rating at 400 V, a 18.5 kW rating at 500 V and a 22 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 18 AWG to 6 AWG. This disconnect switch is 3.07 inches tall, 1.77 inches wide and 2.87 inches deep. The switch weighs 0.30 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL60947-4-1, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements. Compatible Products: VLS1P040D1S; VLSC3P1; VLS8M1; VLSH1S5B; VLSH1S5R; VLSH2H5B; VLSH2H5BD; VLSH2H5R; VLSH2H5RD; VLSS3005; VLS8C2; VLSA10R1E; VLSA11DS
