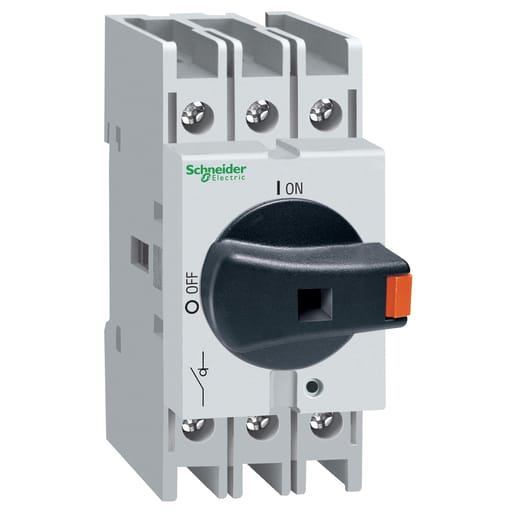

Square-D / Schneider - Square D VLS3P032R1 DISCONNECT SWITCH, 3 POLE 32A UL508 D.S. DIN RAIL
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606481156450
Actuator - Rotary handle;Black
Amperage - 25 Amp AC-23A UE: 500 V-32 Amp UE: 600 V UL 508-25 Amp AC-23A UE: 690 V-32 Amp AC-21A UE: 400 V-32 Amp AC-21A UE: 500 V-32 Amp AC-21A UE: 690 V-32 Amp AC-22A UE: 400 V-32 Amp AC-22A UE: 500 V-32 Amp AC-22A UE: 690 V-32 Amp AC-23A UE: 400 V
Catalog Number - VLS3P032R1
Color - Gray
Packaging
1 ea
EAN
03606481156457
Part #
112290
Catalog #
VLS3P032R1
Commercial reference
VLS3P032R1
12-Digit UPC:
606481156450
Actuator:
Rotary handle;Black
Amperage:
25 Amp AC-23A UE: 500 V-32 Amp UE: 600 V UL 508-25 Amp AC-23A UE: 690 V-32 Amp AC-21A UE: 400 V-32 Amp AC-21A UE: 500 V-32 Amp AC-21A UE: 690 V-32 Amp AC-22A UE: 400 V-32 Amp AC-22A UE: 500 V-32 Amp AC-22A UE: 690 V-32 Amp AC-23A UE: 400 V
Catalog Number:
VLS3P032R1
Color:
Gray
Country of Origin:
Italy
Depths:
78 mm
ERP_productname:
SQD VLS3P032R1 3 POLE 32A UL508 D.S. DIN RAIL MOUNT
Family Brand Name:
Schneider Electric
Heights:
75 mm
Interrupt Rating:
48, 96, 256 AIC
Number of Poles:
3 Pole
Size:
3.07 in
Sub Brand:
VLS3P;TeSys VARIO LS
Tc Connection:
POWER CIRCUIT SCREW CLAMP TERMINALS 10-10 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 16-16 MMA. FLEXIBLE - WITHOUT CABLE END
Type:
Switch body
Voltage:
690 Volt
Wattage:
18.5 kW 500 Volt AC-23 Amps)-22 kW 690 Volt AC-23 Amps)-15 kW 400 Volt AC-23 Amps)
Widths:
36 mm
SoneparProductId:
SKU_US_70007888
