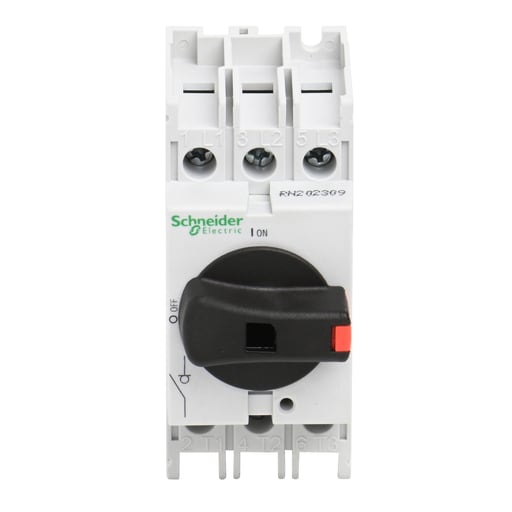

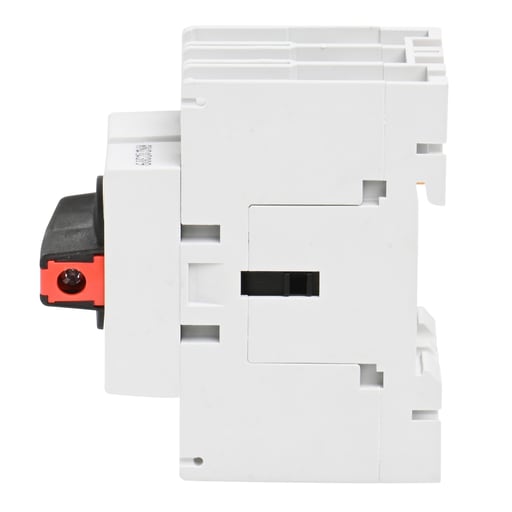

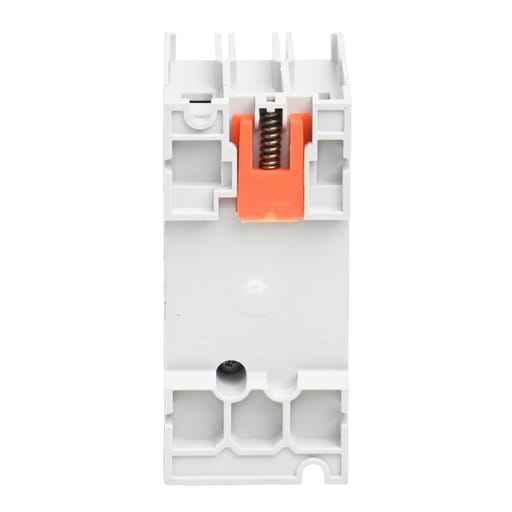

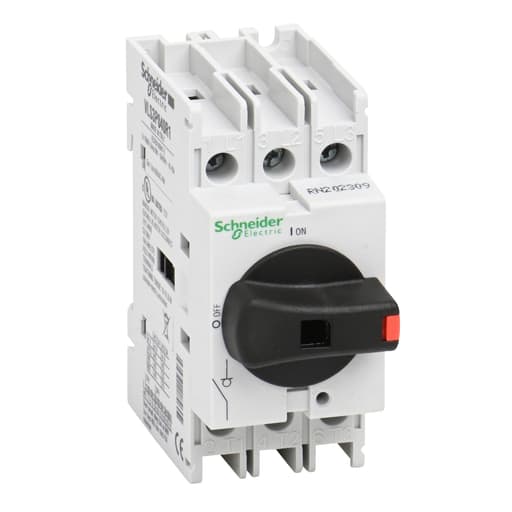

Square-D / Schneider - Square D VLS3P040R1 DISCONNECT SWITCH, 3 POLE 40A UL508 D.S. DIN RAIL

Essential specifications

12-Digit UPC - 606481156467
Actuator - Rotary handle;Black
Amperage - 25 Amp AC-23A UE: 500 V-40 Amp UE: 600 V UL 508-25 Amp AC-23A UE: 690 V-40 Amp AC-21A UE: 400 V-40 Amp AC-21A UE: 500 V-40 Amp AC-21A UE: 690 V-40 Amp AC-22A UE: 400 V-40 Amp AC-22A UE: 500 V-40 Amp AC-22A UE: 690 V-40 Amp AC-23A UE: 400 V
Catalog Number - VLS3P040R1
Color - Gray

Packaging

1 ea

EAN

03606481156464

Part #

127970

Catalog #

VLS3P040R1

Commercial reference

VLS3P040R1

12-Digit UPC:

606481156467

Actuator:

Rotary handle;Black

Amperage:

25 Amp AC-23A UE: 500 V-40 Amp UE: 600 V UL 508-25 Amp AC-23A UE: 690 V-40 Amp AC-21A UE: 400 V-40 Amp AC-21A UE: 500 V-40 Amp AC-21A UE: 690 V-40 Amp AC-22A UE: 400 V-40 Amp AC-22A UE: 500 V-40 Amp AC-22A UE: 690 V-40 Amp AC-23A UE: 400 V

Catalog Number:

VLS3P040R1

Color:

Gray

Country of Origin:

Italy

Depths:

78 mm

ERP_productname:

SQD VLS3P040R1 3 POLE 40A UL508 D.S. DIN RAIL MOUNT

Family Brand Name:

Schneider Electric

Heights:

75 mm

Interrupt Rating:

60, 120, 320 AIC

Number of Poles:

3 Pole

Size:

3.07 in

Sub Brand:

VLS3P;TeSys VARIO LS

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 10-10 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 16-16 MMA. FLEXIBLE - WITHOUT CABLE END

Type:

Switch body

Voltage:

690 Volt

Wattage:

18.5 kW 500 Volt AC-23 Amps)-22 kW 690 Volt AC-23 Amps)-18.5 kW 400 Volt AC-23 Amps)

Widths:

36 mm

SoneparProductId:

SKU_US_30936434

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 40A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 2 HP rating at 120 VAC and a 5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 10 HP rating at 200 to 208 VAC, a 15 HP rating at 240 VAC, a 20 HP rating at 480 VAC and a 25 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 5 kA at 600 V short circuit current rating (SCCR) with a 30A Type RK5 fuse maximum. Per IEC requirements, this disconnect switch has a 18.5 kW rating at 400 V, a 18.5 kW rating at 500 V and a 22 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 18 AWG to 6 AWG. This disconnect switch is 3.07 inches tall, 1.42 inches wide and 2.95 inches deep. The switch weighs 0.30 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is cULus Listed and meets IEC 60947-3 requirements. Compatible Products: VLS1P040R1S; VLSC3P1; VLS8M1; VLSH1S5B; VLSH1S5R; VLSH2H5B; VLSH2H5BD; VLSH2H5R; VLSH2H5RD; VLSS3005; VLS8C2; VLSA10R1E; VLSA11RS
