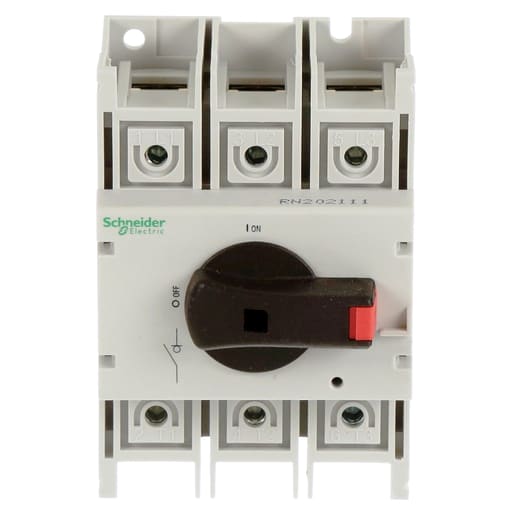

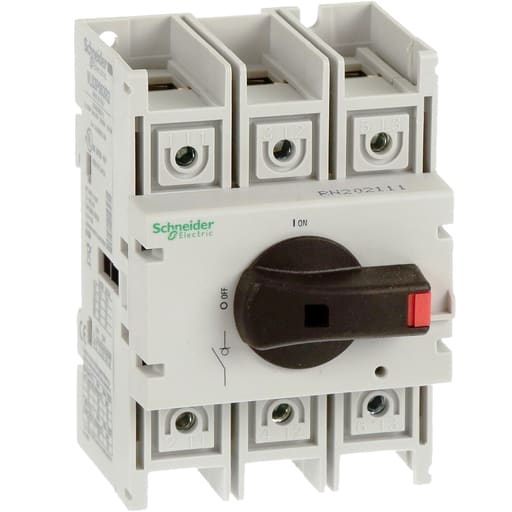

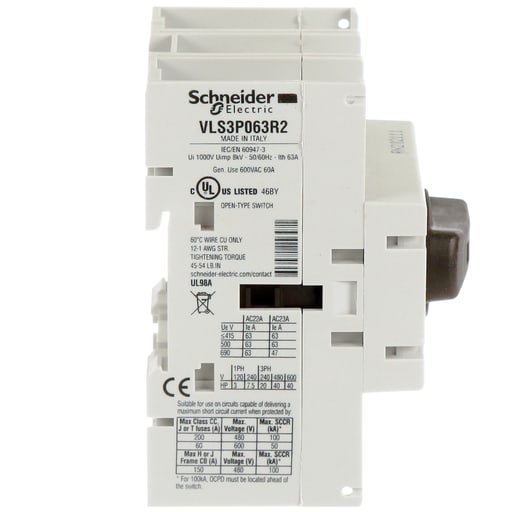

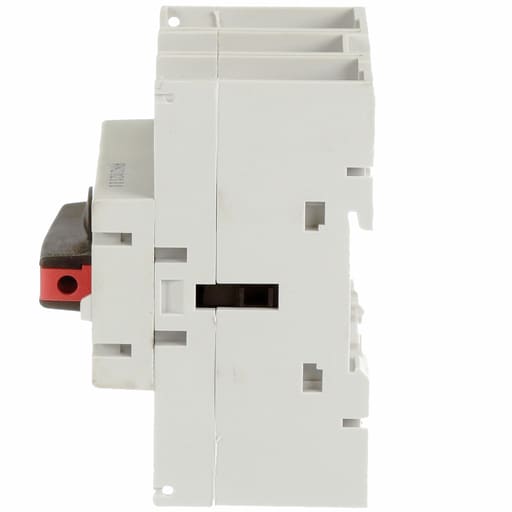

Square-D / Schneider - Square D VLS3P063R2 DISCONNECT SWITCH, 3 POLE 63A UL98 D.S. DIN RAIL MOUNT

Essential specifications

12-Digit UPC - 606481156474
Actuator - Rotary handle;Black
Amperage - 63 Amp AC-21A UE: 400 V-60 Amp UE: 600 V UL98-63 Amp AC-21A UE: 500 V-63 Amp AC-21A UE: 690 V-63 Amp AC-22A UE: 400 V-63 Amp AC-22A UE: 500 V-63 Amp AC-22A UE: 690 V-63 Amp AC-23A UE: 400 V-63 Amp AC-23A UE: 500 V-47 Amp AC-23A UE: 690 V
Catalog Number - VLS3P063R2
Color - Gray

Packaging

1 ea

EAN

03606481156471

Part #

149434

Catalog #

VLS3P063R2

Commercial reference

VLS3P063R2

12-Digit UPC:

606481156474

Actuator:

Rotary handle;Black

Amperage:

63 Amp AC-21A UE: 400 V-60 Amp UE: 600 V UL98-63 Amp AC-21A UE: 500 V-63 Amp AC-21A UE: 690 V-63 Amp AC-22A UE: 400 V-63 Amp AC-22A UE: 500 V-63 Amp AC-22A UE: 690 V-63 Amp AC-23A UE: 400 V-63 Amp AC-23A UE: 500 V-47 Amp AC-23A UE: 690 V

Catalog Number:

VLS3P063R2

Color:

Gray

Country of Origin:

Italy

Depths:

100 mm

ERP_productname:

SQD VLS3P063R2 3 POLE 63A UL98 D.S. DIN RAIL MOUNT

Family Brand Name:

Schneider Electric

Heights:

75 mm

Interrupt Rating:

94.5, 189, 504 AIC

Number of Poles:

3 Pole

Size:

3.94 in

Sub Brand:

VLS3P;TeSys VARIO LS

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 50-50 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 70-70 MMA. FLEXIBLE - WITHOUT CABLE END

Type:

Switch body

Voltage:

690 Volt

Wattage:

45 kW 500 Volt AC-23 Amps)-45 kW 690 Volt AC-23 Amps)-30 kW 400 Volt AC-23 Amps)

Widths:

70 mm

SoneparProductId:

SKU_US_29497959

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This disconnect switch is rated 60A per UL. It has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 3 HP rating at 120 VAC and a 7.5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 20HP rating at 200 to 208 VAC and 240 VAC, a 40 HP rating at 480 VAC and a 40 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 50 kA at 600 V short circuit current rating (SCCR) with a 60A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 30 kW rating at 400 V, a 45 kW rating at 500 V and a 45 kW rating at 690V three phase. The screw clamps will accept from 12 AWG to 1 AWG wire. The screw clamp terminals will also accept 4 mm to 70 mm wire. This disconnect switch is 3.94 inches tall, 2.75 inches wide and 2.95 inches deep. The switch weighs 0.80 lbs. There are many accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements. Compatible Products: VLS1P063D2S; VLS1P063R2S; VLSC3P2; VLS8M2; VLSH1S5B; VLSH1S5R; VLSH2H5B; VLSH2H5BD; VLSH2H5R; VLSH2H5RD; VLSS3005; VLS8C2; VLSA10R1E; VLSA11DS; VLSA11RS
