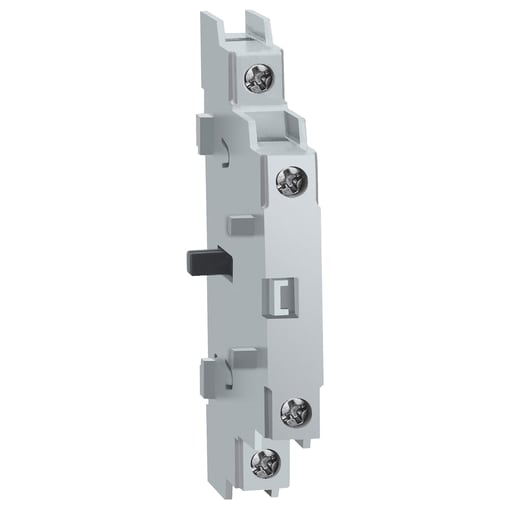

Square-D / Schneider - Square D VLSA10R1E DISCONNECT SWITCH, EARLY MAKE FOR 16A - 63A DIN RAIL

Essential specifications

12-Digit UPC - 606481156757
Amperage - 6 Amp AC-15)24 V AC-6 Amp AC-15)48 V AC-6 Amp AC-15)127 V AC-3 Amp AC-15)240 V AC-3 Amp DC-13)24 V DC-1.5 Amp DC-13)48 V DC-0.55 Amp DC-13)127 V DC-0.27 Amp DC-13)240 V DC
Applications - TeSys (TeSys VARIO LS) VLS3P;TeSys (TeSys VARIO LS) VLS1P
Catalog Number - VLSA10R1E
Color - Gray

Packaging

1 ea

EAN

03606481156754

Part #

293267

Catalog #

VLSA10R1E

Commercial reference

VLSA10R1E

12-Digit UPC:

606481156757

Amperage:

6 Amp AC-15)24 V AC-6 Amp AC-15)48 V AC-6 Amp AC-15)127 V AC-3 Amp AC-15)240 V AC-3 Amp DC-13)24 V DC-1.5 Amp DC-13)48 V DC-0.55 Amp DC-13)127 V DC-0.27 Amp DC-13)240 V DC

Applications:

TeSys (TeSys VARIO LS) VLS3P;TeSys (TeSys VARIO LS) VLS1P

Catalog Number:

VLSA10R1E

Color:

Gray

Country of Origin:

Italy

Depths:

46.2 mm

ERP_productname:

SQD VLSA10R1E DISCONNECT SWITCH, TESYS VLS, AUXILIARY CONTACT BLOCK, ONE NORMALLY CLOSED EARLY BREAK, SIZE 1, DIN RAIL

Family Brand Name:

Schneider Electric

Heights:

78 mm

Size:

1.82 in

Sub Brand:

VLSA

Tc Connection:

Control circuit screw clamp terminals 2.5-2.5 mm. flexible - without cable end

Type:

Auxiliary contact block

Voltage:

690 Volt

Widths:

12 mm

SoneparProductId:

SKU_US_192464892

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This auxiliary contact can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1 or VLS3P063R1 DIN rail mount switch. This auxiliary contact can be mounted on the right or left hand side. This auxiliary contact has one normally open early beak contact. The operational voltage of this auxiliary contact is 600 V. This auxiliary contact block has A600 and Q600 current ratings. The screw clamp terminals will accept 18 AWG to 6 AWG wire. Auxiliary contact module is 3.07 inches tall, 0.47 inches wide and 1.72 inches deep. It weighs 0.08 lbs. This auxiliary contact module is cULus Listed and meets IEC 60947-3 requirements. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
