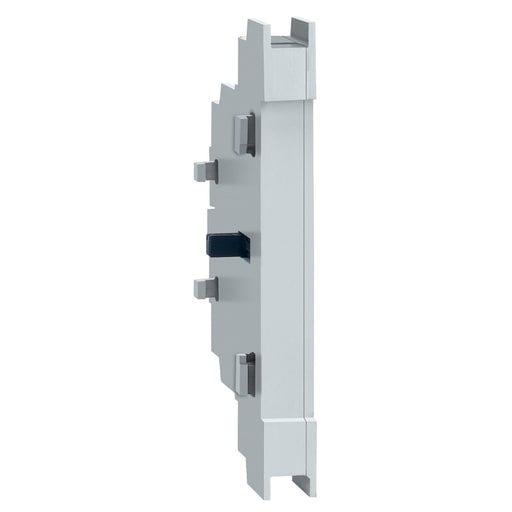

Square-D / Schneider - Square D VLSA11DS DISCONNECT SWITCH, AUX CONTACT 1NO 1NC FOR DOOR MOUNT

Essential specifications

12-Digit UPC - 606481156740
Amperage - 6 Amp AC-15)24 V AC-6 Amp AC-15)48 V AC-6 Amp AC-15)127 V AC-3 Amp AC-15)240 V AC-3 Amp DC-13)24 V DC-1.5 Amp DC-13)48 V DC-0.55 Amp DC-13)127 V DC-0.27 Amp DC-13)240 V DC
Applications - TESYS VARIO LS VLSA- TESYS VARIO LS VLS3P- TESYS VARIO LS VLS1P
Catalog Number - VLSA11DS
Color - Gray

Packaging

1 ea

EAN

03606481156747

Part #

165175

Catalog #

VLSA11DS

Commercial reference

VLSA11DS

12-Digit UPC:

606481156740

Amperage:

6 Amp AC-15)24 V AC-6 Amp AC-15)48 V AC-6 Amp AC-15)127 V AC-3 Amp AC-15)240 V AC-3 Amp DC-13)24 V DC-1.5 Amp DC-13)48 V DC-0.55 Amp DC-13)127 V DC-0.27 Amp DC-13)240 V DC

Applications:

TESYS VARIO LS VLSA- TESYS VARIO LS VLS3P- TESYS VARIO LS VLS1P

Catalog Number:

VLSA11DS

Color:

Gray

Country of Origin:

Italy

Depths:

46.2 mm

ERP_productname:

SQD VLSA11DS AUX CONTACT 1NO 1NC FOR DOOR MOUNT

Family Brand Name:

Schneider Electric

Heights:

72.6 mm

Size:

1.82 in

Sub Brand:

VLSA

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 2.5-2.5 MMA. FLEXIBLE - WITHOUT CABLE END

Type:

Auxiliary contact block

Voltage:

690 Volt

Widths:

8.5 mm

SoneparProductId:

SKU_US_29059294

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This auxiliary contact can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1 or VLS3P063R1 DIN rail mount switch. This auxiliary contact can also be added to a VLS3P030R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount switch. This auxiliary contact can be mounted on the right or left hand side. This auxiliary contact has one normally open early break contact. The operational voltage of this auxiliary contact is 600 V. This auxiliary contact block has A600 and Q600 current ratings. The screw clamp terminals will accept 18 AWG to 6 AWG wire. This auxiliary contact is 2.86 inches tall, 0.33 inches wide and 1.82 inches deep. The switch weighs 0.07 lbs. This auxiliary contact module is cULus Listed and meets IEC 60947-3 requirements. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
