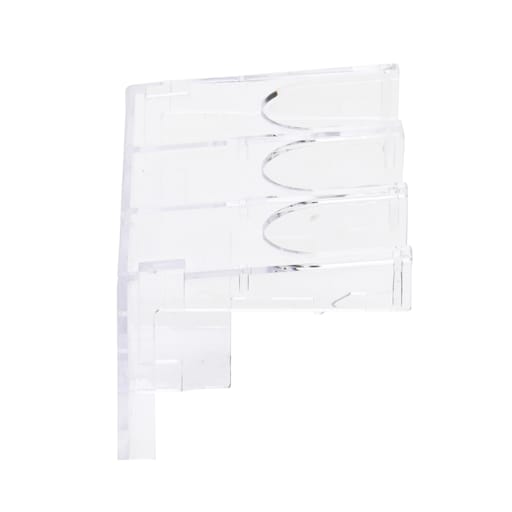

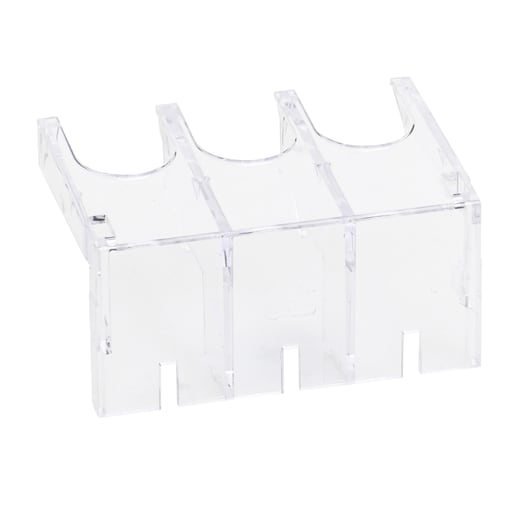

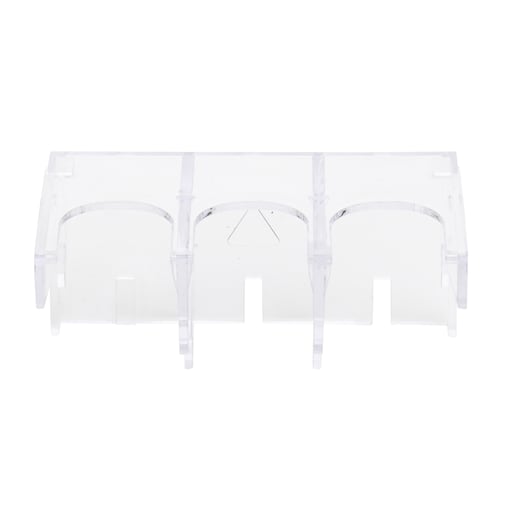

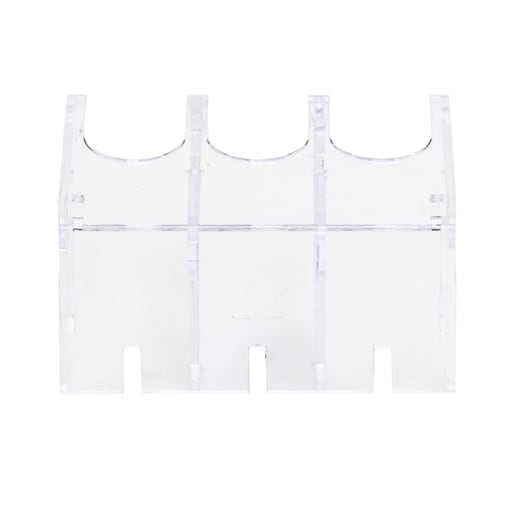

Square-D / Schneider - Square D VLSC3P2 DISCONNECT SWITCH, 3 POLE TERMINAL COVER FOR 63-125A

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This protective terminal cover is for the three poles of the main VLS disconnect switch. This protective cover can be added to a VLS3P032R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount disconnect switch. This protective cover can be added to a VLS3P032D2, VLS3P063D2, VLS3P080D2, VLS3P100D2 or VLS3P125D2 door mount disconnect switch. Each package has two of these terminal protective covers. This protective terminal cover is 1.46 inches tall, 2.76 inches wide and 1.81 inches deep. The switch weighs 0.07 lbs. This protective cover is cULus Listed and meets IEC 60947-3 requirements. Compatible Products: VLS3P063R2; VLS3P080R2; VLS3P100R2; VLS3P125R2; VLS3P063D2; VLS3P080D2; VLS3P100D2; VLS3P125D2; VLS3P030D2
