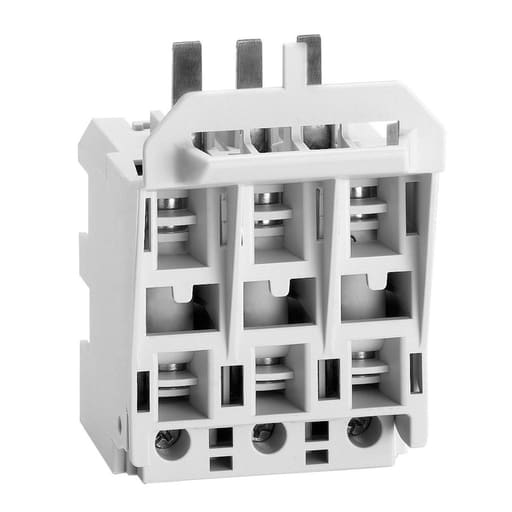

Square-D / Schneider - Square D VLSFH1UL DISCONNECT SWITCH, TeSys VLS - fuse holder for 3P
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606481157143
Catalog Number - VLSFH1UL
Country of Origin - Italy
Depths - 80.1 mm
ERP_productname - SQD VLSFH1UL CC FUSE HOLDER
Packaging
1 ea
EAN
03606481157140
Part #
184346
Catalog #
VLSFH1UL
Commercial reference
VLSFH1UL
12-Digit UPC:
606481157143
Catalog Number:
VLSFH1UL
Country of Origin:
Italy
Depths:
80.1 mm
ERP_productname:
SQD VLSFH1UL CC FUSE HOLDER
Family Brand Name:
Schneider Electric
Heights:
75.2 mm
Number of Poles:
3 Pole
Size:
3.15 in
Sub Brand:
VLSFH;TeSys VARIO LS
Tc Connection:
POWER CIRCUIT SCREW CLAMP TERMINALS 10-10 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 16-16 MMA. FLEXIBLE WITHOUT CABLE END
Type:
Fuse holder
Widths:
52.5 mm
SoneparProductId:
SKU_US_29070737
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This fuse holder block is suitable for Class CC fuses. This fuse holder block can be used with a VLS3P016R1, VLS3P025R1 or VLS3P032R1 DIN rail mount disconnect switch. Fuse holder has a UL rating of 30 A at 600VAC 50/60 Hz. This protective terminal cover is 2.96 inches tall, 2.07 inches wide and 3.15 inches deep. The switch weighs 0.30 lbs. This fuse holder is cULus Listed and meets IEC 60947-3 requirements.
