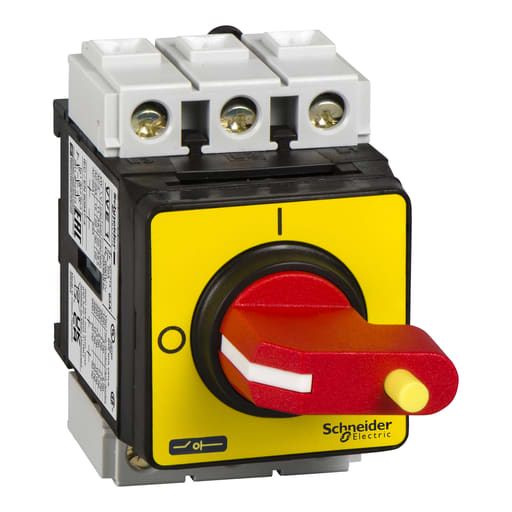

Square-D / Schneider - Square D VVE3 690 VAC 45 Amp 3-Pole Motor Disconnect Switch

Essential specifications

12-Digit UPC - 785901626824
Actuator - RED,ROTARY HANDLE
Amperage - 41.5 Amp AC-23 UE: 400 V
Applications - MAIN SWITCH DISCONNECTOR
Catalog Number - VVE3

Packaging

1 ea

EAN

03389110553154

Part #

125777

Catalog #

VVE3

Commercial reference

VVE3

12-Digit UPC:

785901626824

Actuator:

RED,ROTARY HANDLE

Amperage:

41.5 Amp AC-23 UE: 400 V

Applications:

MAIN SWITCH DISCONNECTOR

Catalog Number:

VVE3

Country of Origin:

Czechia

Depths:

110 mm

ERP_productname:

SQD VVE3 45AMP SW KIT W/RED/YELLOW OPER.ATTACHED

Enclosure:

IP65-IP65 CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

83 mm

Interrupt Rating:

500 AIC

Number of Poles:

3 Pole

Size:

110 MM,45 X 45 MM,60 MM,83 MM

Sub Brand:

TESYS VARIO,VVE

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 25-25 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 16-16 MMA. FLEXIBLE - WITH CABLE END

Type:

EMERGENCY STOP SWITCH DISCONNECTOR

Voltage:

690 Volt

Wattage:

11 kW 230...240 Volt AC-3)-22 kW 500 Volt AC-3)-22 kW 690 Volt AC-23 Amps)-30 kW 500 Volt AC-23 Amps)-18.5 kW 400...415 Volt AC-3)-18.5 kW 690 Volt AC-3)-15 kW 230...240 Volt AC-23 Amps)-22 kW 400...415 Volt AC-23 Amps)

Widths:

60 mm

SoneparProductId:

SKU_US_26554325

VVE3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop in motor applications 22kW@400V AC-23. For mounting in modular panels, it provides a red & yellow operator and IP20 protection front face. VVE3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop in motor applications 22kW@400V AC-23. It consists of a V3 Vario switch body with a padlockable red & yellow operator to be mounted in modular panels. It ensures an IP20 protection front face. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for installation in modular panels. Composed with a switch body V3 and a red & yellow operator, for emergency stop (padlockable with 1 padlock). Ensures an IP20 protection degree front face. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: VZ7; VZ12; VZ20; VZ15; VZ3 - Cross Sell Products: VZ9
