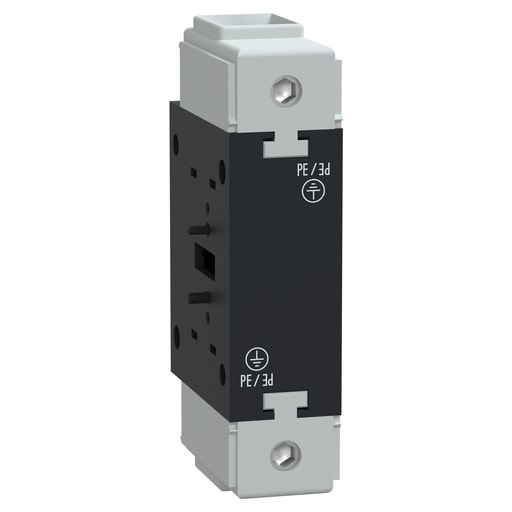

Square-D / Schneider - Square D VZ16 Motor Disconnect Switch Grounding Module
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110551955
Amperage - 175 Amp
Applications - V5-V6
Catalog Number - VZ16
Country of Origin - Czechia
Packaging
1 ea
EAN
03389110551952
Part #
214187
Catalog #
VZ16
Commercial reference
VZ16
12-Digit UPC:
389110551955
Amperage:
175 Amp
Applications:
V5-V6
Catalog Number:
VZ16
Country of Origin:
Czechia
Depths:
63 mm
ERP_productname:
SQD VZ16 GROUNDING MODULE FOR 100 TO 115A SWITCH
Enclosure:
IP20 CONFORMING TO IEC 60529
Family Brand Name:
Schneider Electric
Heights:
125 mm
Size:
125 MM,30 MM,63 MM
Sub Brand:
VZ
Tc Connection:
SCREW CLAMP TERMINALS
Type:
ADDITIONAL EARTHING BLOCK
Voltage:
690 Volt
Widths:
30 mm
SoneparProductId:
SKU_US_26720138
VZ16 is an add-on earthing module for TeSys Vario switch-disconnector from Schneider Electric. Rated 125A to 175A 690V, to be used with V5 and V6 switch bodies. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). Compatible Products: VCF5; VCCF6; VCCF5; VCF6; VBF5; VBF6; VC5GUN; VC6GUN - Cross Sell Products: V5; V6
