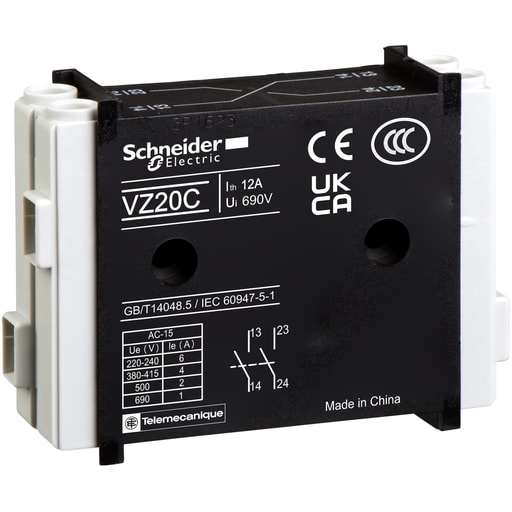

Square-D / Schneider - Square D VZ20 1NO 690 VAC 12 Amp Right Mount Auxiliary Contact Block

Essential specifications

12-Digit UPC - 389110551979
Amperage - 12 Amp
Applications - V3-V01-V2-V0-V6-V4-V1-V5-V02
Catalog Number - VZ20
Country of Origin - Czechia

Packaging

1 ea

EAN

03389110551976

Part #

128214

Catalog #

VZ20

Commercial reference

VZ20

12-Digit UPC:

389110551979

Amperage:

12 Amp

Applications:

V3-V01-V2-V0-V6-V4-V1-V5-V02

Catalog Number:

VZ20

Country of Origin:

Czechia

Depths:

48.5 mm

ERP_productname:

SQD VZ20 2NO AUXILIARY CONTACT

Enclosure:

IP20 CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

65 mm

Size:

20 MM,48.5 MM,65 MM

Sub Brand:

Tc Connection:

SCREW CLAMP TERMINALS 2 0.75-1.5 MMA. FLEXIBLE - WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA. SOLID

Type:

AUXILIARY CONTACT BLOCK

Voltage:

690 Volt

Widths:

20 mm

SoneparProductId:

SKU_US_69983988

VZ20 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. To be used with V02 to V6 switch bodies, mounted on one side of the switch body. It includes 2NO late make contacts rated for AC operation until 690V and DC operation until 250V. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). Compatible Products: VCF0; VCF1; VCF01; VCF3; VCF2; VCF01GE; VCF02; VCCF02; VCCF1; VCF02GE; VCCF0; VCF0GE; VCCF2; VCF2GE; VCCF3; VCD01; VCF4; VCD0; VCCF01; VCF1GE; VBF01GE; VBF0; VCCF4; VCD1; VBF1; VBF3; VBF01; VBD0; VCF5; VBF02GE; VCD02; VBD01; VBF02; VBF2; VCCF6; VC1GUN; VCD2; VCCF5; VCCD1; VBF0GE; VCF4GE; VVE0; VCF3GE; VBF1GE; VCF6; VBD2; VCCD01; VZ29; VCCD0; VBF2GE; VBD1; VBF4; VCCD2; VVD0; VVD2; VBF5; VVD3; VBD02; VVD1; VC2GUN; VBF3GE; VBF4GE; VBF6; VCCD02; VC4GUN; VVE3; VVE2; VC5GUN; VVE1; VC6GUN - Cross Sell Products: V0; V01; V1; V2; V3; V02; V4; V5; V6
