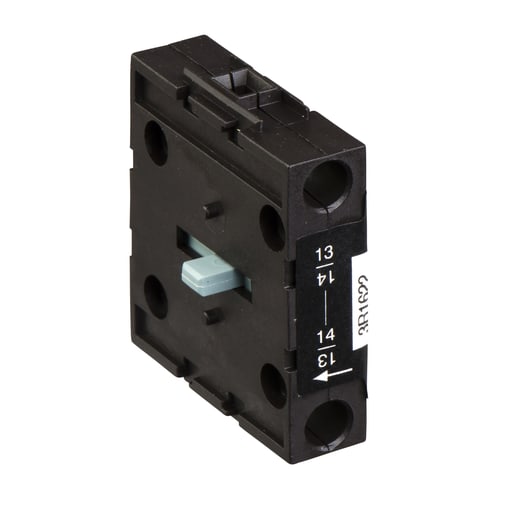

Square-D / Schneider - Square D VZN05 TeSys Mini-VARIO - AUXILIARY
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901760054
Amperage - 6 Amp
Applications - VN20;VN12
Catalog Number - VZN05
Country of Origin - Czechia
Packaging
1 ea
EAN
03389110760057
Part #
207524
Catalog #
VZN05
Commercial reference
VZN05
12-Digit UPC:
785901760054
Amperage:
6 Amp
Applications:
VN20;VN12
Catalog Number:
VZN05
Country of Origin:
Czechia
Depths:
39 mm
ERP_productname:
SQD VZN05 AUXILIARY CONTACT NO
Enclosure:
IP20 CONFORMING TO IEC 60529
Family Brand Name:
Schneider Electric
Heights:
45.5 mm
Size:
1.54 in
Sub Brand:
VZN
Tc Connection:
SCREW CLAMP TERMINALS 2 0.75-1.5 MMA. FLEXIBLE - WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA. SOLID
Type:
Auxiliary contact block
Voltage:
690 Volt
Widths:
12 mm
SoneparProductId:
SKU_US_29319399
VZN05 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. For use with Vario switch types VN12 and VN20, it includes 1NO contact rated for AC and DC operation. VZN05 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. For use with Vario switch types VN12 and VN20, it is mounted on one side of the switch body. It includes 1NO contact rated for AC operation until 690V and DC operation until 250V. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Auxiliary contacts module, including 1NO "late make" contact, for Vario switch types VN12 and VN20. Rated for operation in AC-15 operation until 690V and DC-01 operation until 250V. To be installed on one side of a switch body. Compatible Products: VBDN20; VCDN20; VN12; VCDN12; VN20; VCFN12GE; VCFN20GE; VBDN12; VCCDN20
