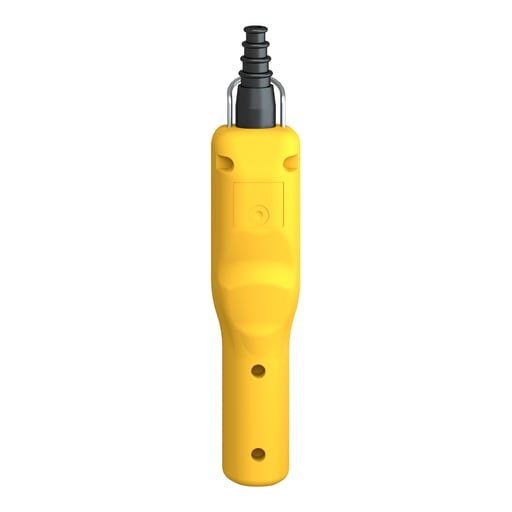

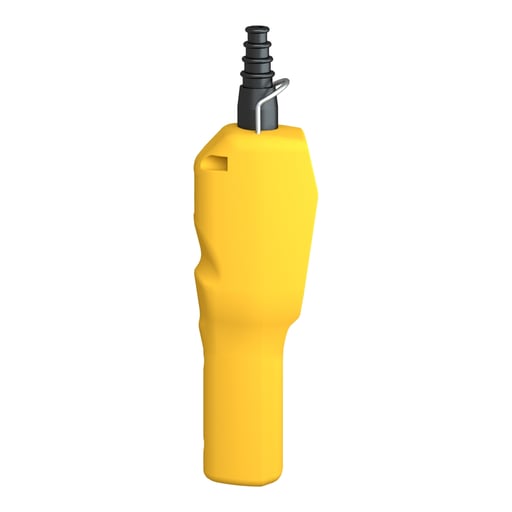

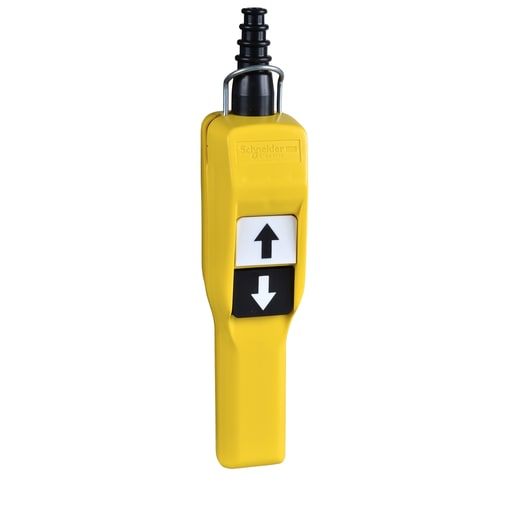

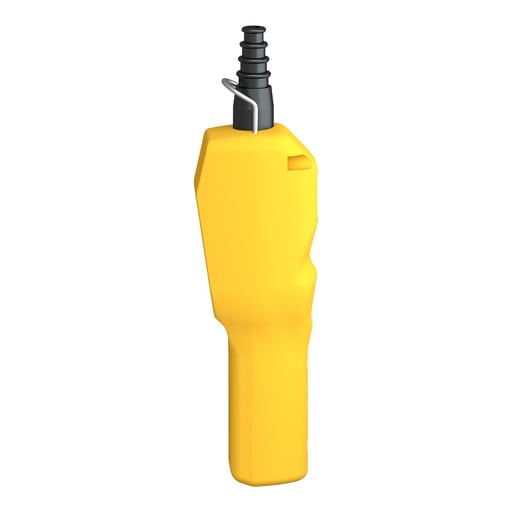

Square-D / Schneider - Square D XACA205 600 VAC 10 Amp 1NO 1NC NEMA 4/4X/5 Yellow Polypropylene Pendant Station

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389110645029

  • Actuator - (2) PUSHBUTTONS (UP/DOWN ARROWS)

  • Amperage - 10 Amp

  • Applications - Control circuit;Control of single speed hoist motor

  • Catalog Number - XACA205

Packaging

  • 1 ea

EAN

03389110645026

Part #

148120

Catalog #

XACA205

Commercial reference

XACA205

12-Digit UPC:

389110645029

Actuator:

(2) PUSHBUTTONS (UP/DOWN ARROWS)

Amperage:

10 Amp

Applications:

Control circuit;Control of single speed hoist motor

Catalog Number:

XACA205

Country of Origin:

USA

ERP_productname:

SQD XACA205 PENDANT STATION 600VAC 10A XAC +OPTIONS

Enclosure:

Polypropylene

Enclosure Material:

Polypropylene

Enclosure Type:

Complete Ready For Use

Family Brand Name:

Schneider Electric

Material:

Polypropylene

Sub Brand:

XACA pistol grip

Tc Connection:

SCREW CLAMP

Type:

Double insulated;Intuitive;Pendant control station

Voltage:

600 Volt

Wattage:

40 Watt DC-13 1000000 CYCLES 60 CYC/MN 120 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-48 Watt DC-13 1000000 CYCLES 60 CYC/MN 48 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-65 Watt DC-13 1000000 CYCLES 60 CYC/MN 24 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C

SoneparProductId:

SKU_US_26310205

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropyl.ne enclosure with 2 standard push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: XACA215
