Square-D / Schneider - Square D XACA2053 600 VAC 10 Amp NEMA 4/4X/5 Yellow Polypropylene Pendant Station

Essential specifications

12-Digit UPC - 785901770374
Actuator - (2) PUSHBUTTONS (UP/DOWN ARROWS)
Amperage - 10 Amp
Applications - Control circuit;Control of single speed hoist motor
Catalog Number - XACA2053

Packaging

1 ea

EAN

03389110558814

Part #

151777

Catalog #

XACA2053

Commercial reference

XACA2053

12-Digit UPC:

785901770374

Actuator:

(2) PUSHBUTTONS (UP/DOWN ARROWS)

Amperage:

10 Amp

Applications:

Control circuit;Control of single speed hoist motor

Catalog Number:

XACA2053

Country of Origin:

France

ERP_productname:

SQD XACA2053 PENDANT STATION 600VAC 10A XAC +OPTIONS

Enclosure:

Polypropylene

Enclosure Material:

Polypropylene

Enclosure Type:

Complete Ready For Use

Family Brand Name:

Schneider Electric

Material:

Polypropylene

Sub Brand:

XACA pistol grip

Tc Connection:

SCREW CLAMP TERMINALS, 1 X 2.5 MMA. WITH OR WITHOUT CABLE END-SCREW CLAMP TERMINALS, 2 X 1.5 MMA. WITH OR WITHOUT CABLE END

Type:

Double insulated;Intuitive;Pendant control station

Voltage:

600 Volt

Wattage:

40 Watt DC-13 1000000 CYCLES 60 CYC/MN 120 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-48 Watt DC-13 1000000 CYCLES 60 CYC/MN 48 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-65 Watt DC-13 1000000 CYCLES 60 CYC/MN 24 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C

SoneparProductId:

SKU_US_26285197

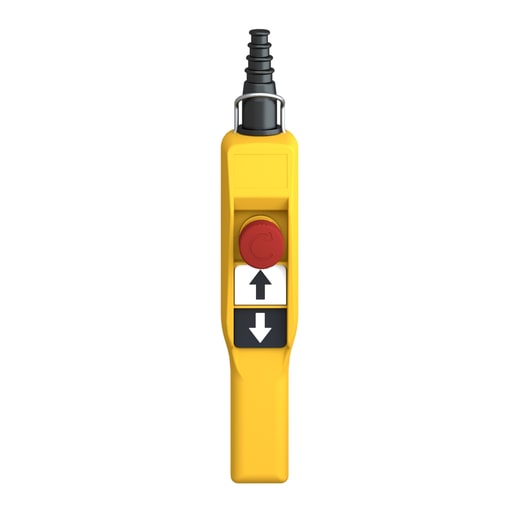

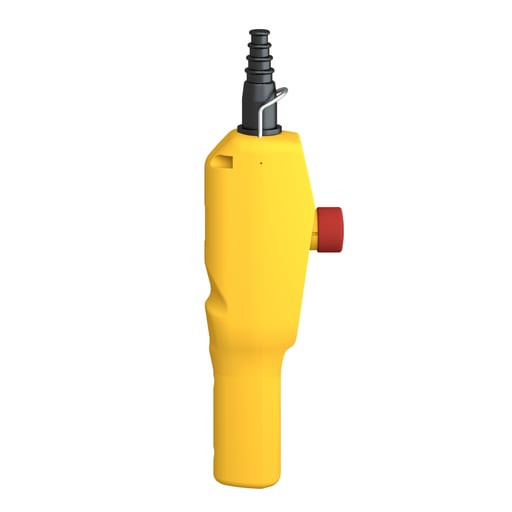

This Harmony XAC, yellow pendant station for hoist motor has single speed. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 2 push buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its ergonomic pistol grip allows single handed control of your hoist and crane. Its wide range of operating temperatures from -25.C to 70.C allows versatility in usage of product. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZB2BE101; ZB2BE102; XENG1491; XENG3781 - Cross Sell Products: XACB085
