Square-D / Schneider - Square D XACB06 6-Button Pendant Control Station Empty Enclosure

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389110640529

  • Applications - Control circuit;Power circuit

  • Catalog Number - XACB06

  • Color - Yellow

  • Country of Origin - Czechia

Packaging

  • 1 ea

EAN

03389110640526

Part #

225722

Catalog #

XACB06

Commercial reference

XACB06

12-Digit UPC:

389110640529

Applications:

Control circuit;Power circuit

Catalog Number:

XACB06

Color:

Yellow

Country of Origin:

Czechia

ERP_productname:

SQD XACB06 6 BUTTON PENDANT W/O KO IN BASE

Enclosure:

Glass reinforced polyester

Enclosure Material:

Polyester

Enclosure Type:

Empty Enclosure

Family Brand Name:

Schneider Electric

Material:

Glass

Size:

6 CUT-OUTS

Sub Brand:

XACB

Tc Connection:

RUBBER SLEEVE WITH STEPPED ENTRY

Type:

Double insulated;Pendant control station

SoneparProductId:

SKU_US_26309792

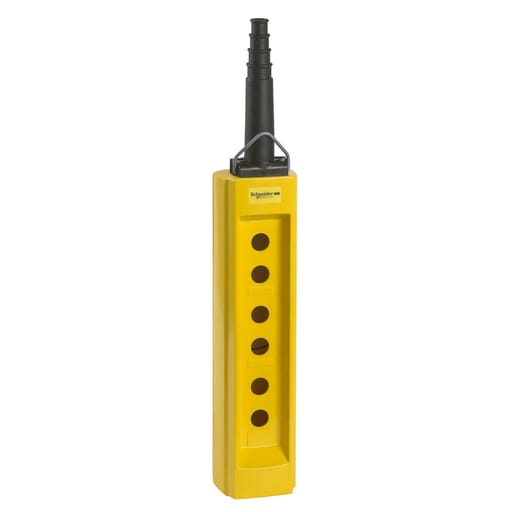

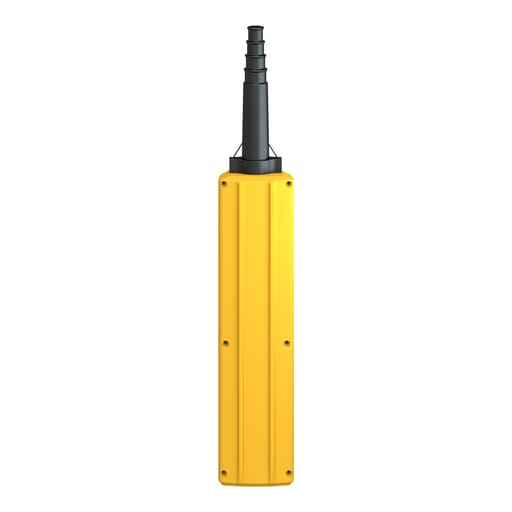

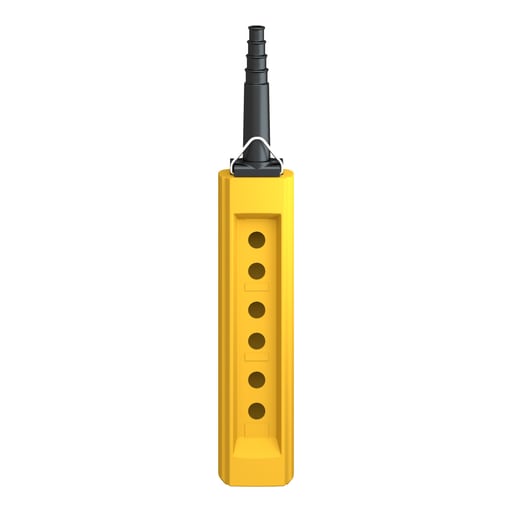

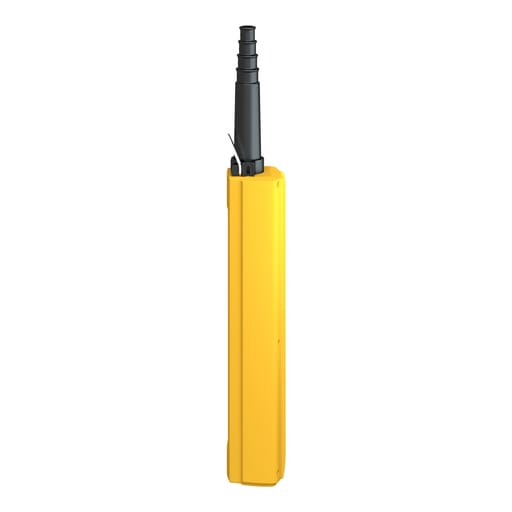

This yellow empty pendant station for control or power circuits is designed for general purpose applications. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a glass reinforced polyester enclosure with 6 vertical openings diameter 22mm and operator cut-out centres 40 mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: XACB982; XACB960; ZB2SZ3 - Cross Sell Products: XESD1191; XESD2201; XACB9111
