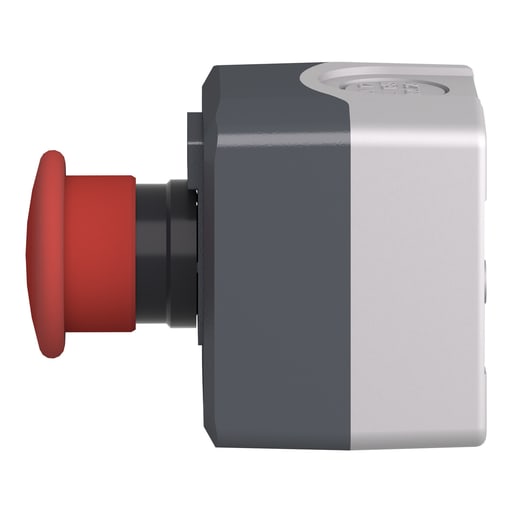

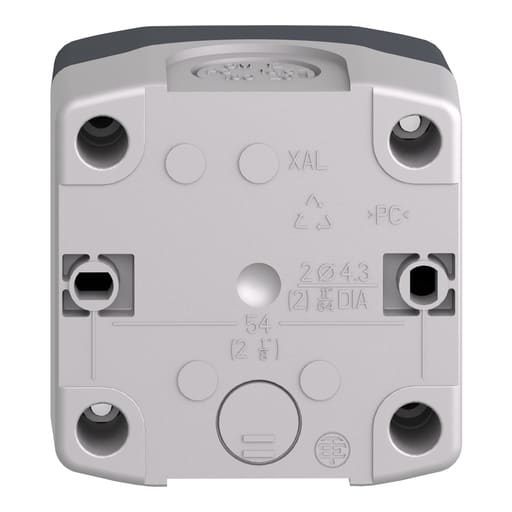

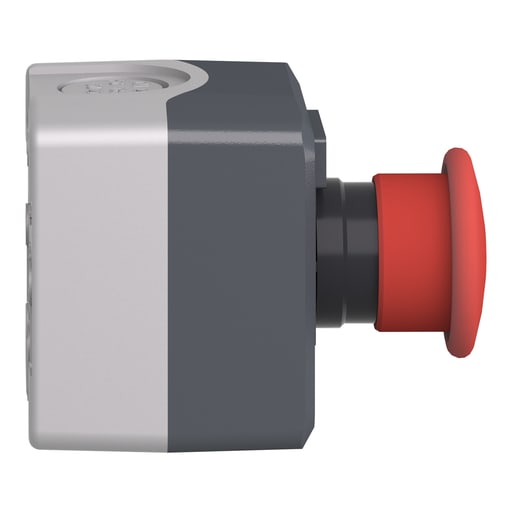

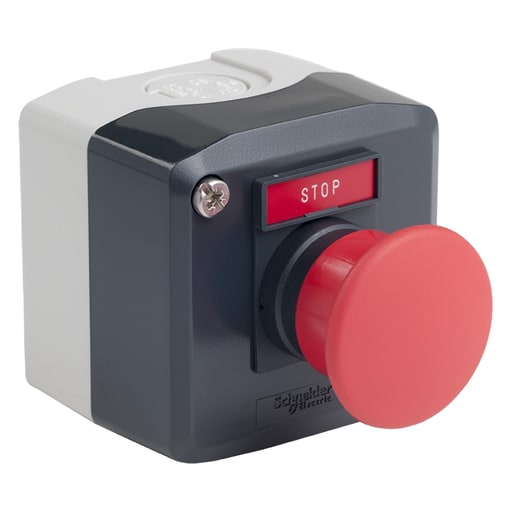

Square-D / Schneider - Square D XALD164H29H7 MUSHROOM BUTTON CONTROL STATION

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389119413834

  • Actuator - Red ''STOP'' 1 NC;1 mushroom head push-button

  • Amperage - 6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1

  • Applications - For XB5 . 22 mm control and signalling units

  • Catalog Number - XALD164H29H7

Packaging

  • 1 ea

EAN

03389119413831

Part #

129834

Catalog #

XALD164H29H7

Commercial reference

XALD164H29H7

12-Digit UPC:

389119413834

Actuator:

Red ''STOP'' 1 NC;1 mushroom head push-button

Amperage:

6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1

Applications:

For XB5 . 22 mm control and signalling units

Catalog Number:

XALD164H29H7

Country of Origin:

Czechia

ERP_productname:

SQD XALD164H29H7 MUSHROOM BUTTON CONTROL STATION

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Material:

Polycarbonate

Sub Brand:

XALD

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

Complete control station

SoneparProductId:

SKU_US_29323849

This Harmony XALD dark grey control station for start/stop function is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with mushroom head push button is ideal to control start / stop operation in your machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40.C to 70.C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine. Compatible Products: ZBZ28; ZBY2101; ZB4FBZ014 - Cross Sell Products: XB5AA31 - Spare Part Products: ZB5AC4; XALD01H7
