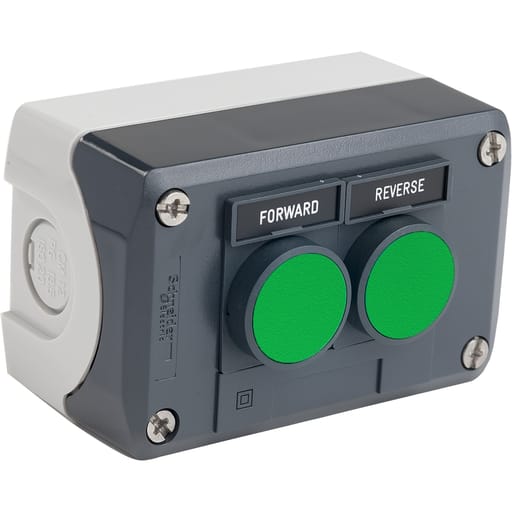

Square-D / Schneider - Square D XALD251H29H7 600 VAC 300 VDC 10 Amp 2NO Polycarbonate Push Button Control Station

Essential specifications

12-Digit UPC - 606480502708
Amperage - 6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1
Applications - Two functions;For XB5 . 22 mm control and signalling units
Catalog Number - XALD251H29H7
Color - DARK GREY RAL 7016)

Packaging

1 ea

EAN

03606480502705

Part #

170203

Catalog #

XALD251H29H7

Commercial reference

XALD251H29H7

12-Digit UPC:

606480502708

Amperage:

6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1

Applications:

Two functions;For XB5 . 22 mm control and signalling units

Catalog Number:

XALD251H29H7

Color:

DARK GREY RAL 7016)

Country of Origin:

France

ERP_productname:

SQD XALD251H29H7 PUSHBUTTON ENCLOSURE FWD & REV

Enclosure:

Polycarbonate

Family Brand Name:

Schneider Electric

Material:

Polycarbonate

Sub Brand:

XALD

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

Complete control station

SoneparProductId:

SKU_US_26567511

This Harmony XALD, is a complete ready to use control station for two functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, IP67, IP69, IP69K, making it ideal for operation in harsh environments. This control station provides a good resistance to chemical agents, thanks to its electrical double insulation. Its wide range of operating temperatures from -40.C to 70.C allows versatility in usage of product. It provides a polycarbonate double insulated enclosure with a light grey (RAL 7035) base of enclosure and a dark grey (RAL 7016) cover. This control station is ideally suited for industrial, buildings, and infrastructure applications. This control station complies with IEC, UL, CSA standards, as well as CE marking. It is also UL listed and CSA certified. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads
