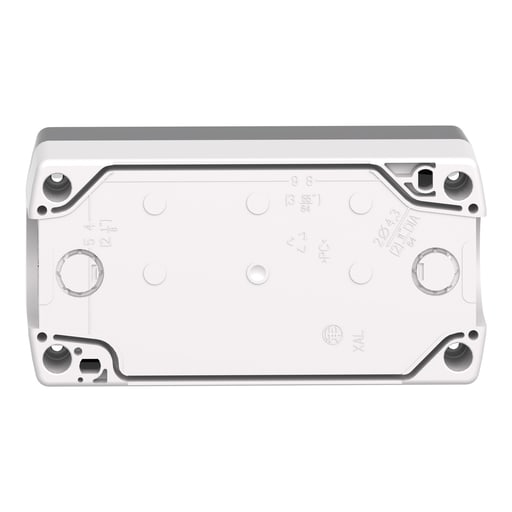

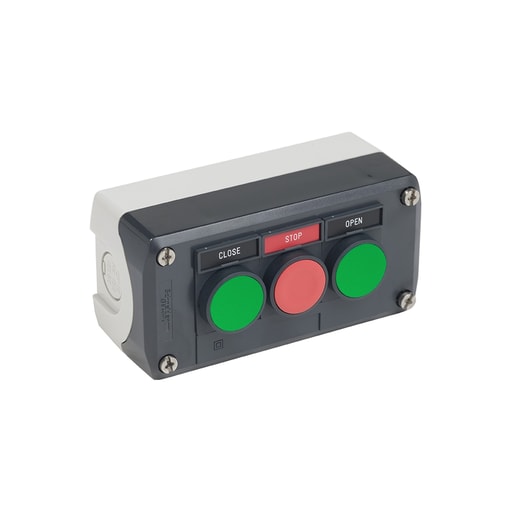

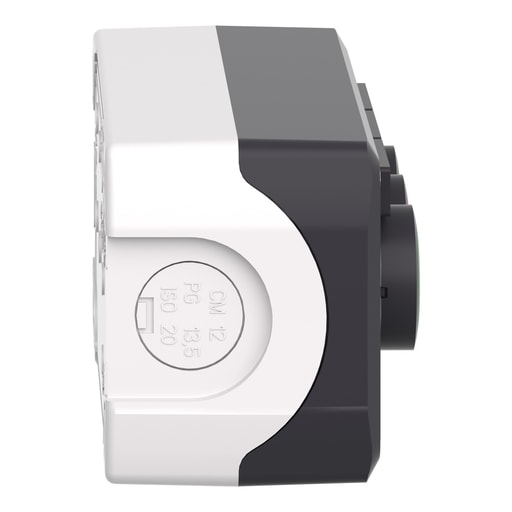

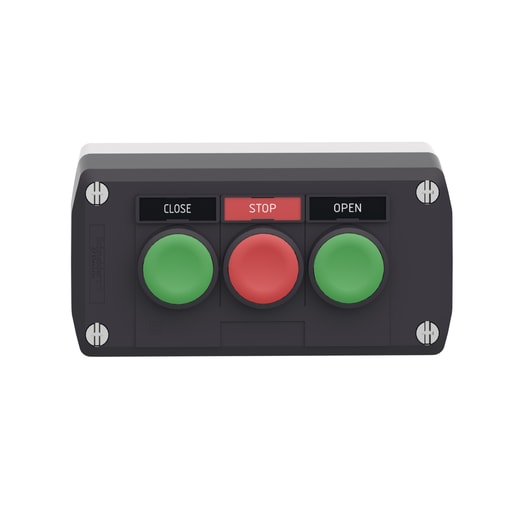

Square-D / Schneider - Square D XALD351H29H7 600 VAC 300 VDC 10 Amp 2NO 1NC Polycarbonate Push Button Control Station
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480502715
Amperage - 6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1
Applications - Three functions;For XB5 . 22 mm control and signalling units
Catalog Number - XALD351H29H7
Color - DARK GREY RAL 7016)
Packaging
1 ea
EAN
03606480502712
Part #
210987
Catalog #
XALD351H29H7
Commercial reference
XALD351H29H7
12-Digit UPC:
606480502715
Amperage:
6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1
Applications:
Three functions;For XB5 . 22 mm control and signalling units
Catalog Number:
XALD351H29H7
Color:
DARK GREY RAL 7016)
Country of Origin:
USA
ERP_productname:
SQD XALD351H29H7 PUSHBUTTON ENCLOSURE OPEN-STOP-CLOSE
Enclosure:
Polycarbonate
Family Brand Name:
Schneider Electric
Material:
Polycarbonate
Sub Brand:
XALD
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1
Type:
Complete control station
SoneparProductId:
SKU_US_29509595
