Square-D / Schneider - Square D XALK178GH7 CONTROL STN E-STOP TRIGGER ACTION

Essential specifications

12-Digit UPC - 389119413957
Actuator - 1 MUSHROOM HEAD PUSH-BUTTON,1 MUSHROOM HEAD .. 40 MM PUSH-BUTTON, RED 1 NO + 2 NC UNMARKED,RED UNMARKED 1 NO + 2 NC
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Applications - FOR XB5 .. 22 MM CONTROL AND SIGNALLING UNITS
Catalog Number - XALK178GH7

Packaging

1 ea

EAN

03389119413954

Part #

166160

Catalog #

XALK178GH7

Commercial reference

XALK178GH7

12-Digit UPC:

389119413957

Actuator:

1 MUSHROOM HEAD PUSH-BUTTON,1 MUSHROOM HEAD .. 40 MM PUSH-BUTTON, RED 1 NO + 2 NC UNMARKED,RED UNMARKED 1 NO + 2 NC

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Applications:

FOR XB5 .. 22 MM CONTROL AND SIGNALLING UNITS

Catalog Number:

XALK178GH7

Country of Origin:

Czechia

ERP_productname:

SQD XALK178GH7 CONTROL STN E-STOP TRIGGER ACTION

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Material:

Polycarbonate

Size:

22MM

Sub Brand:

XALK

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

COMPLETE CONTROL STATION

SoneparProductId:

SKU_US_32003108

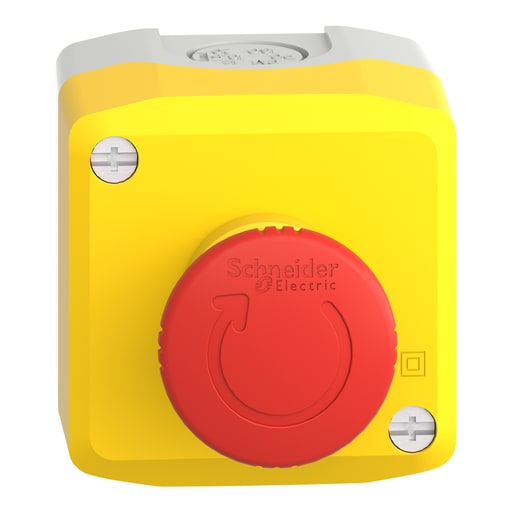

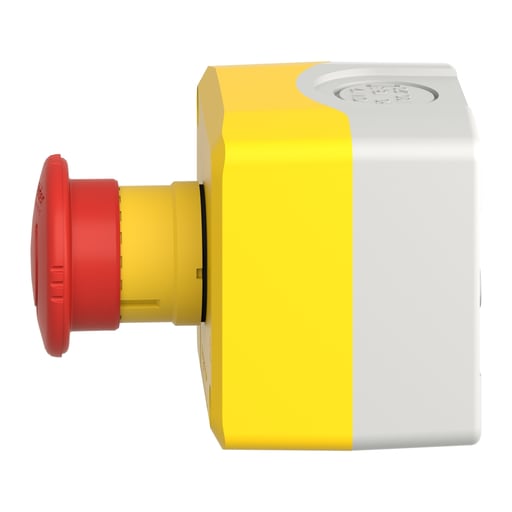

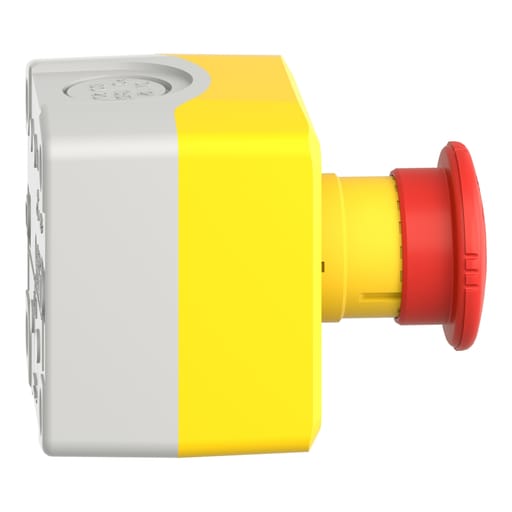

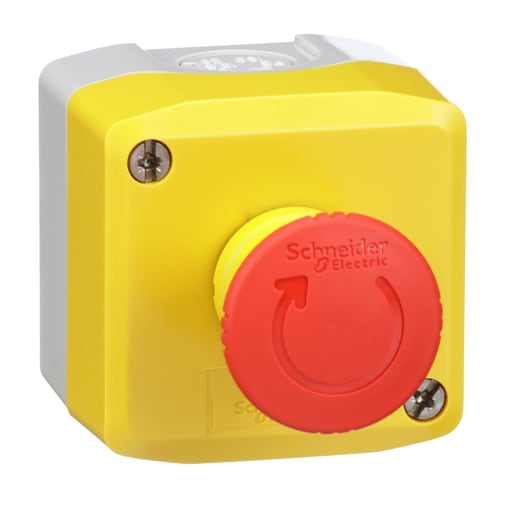

This Harmony XALK yellow control station for emergency stop function is ideal for your complete control station. It operates with turn to release mechanism and uses screw-clamp terminals. This control station with mushroom head push button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40.C to 70.C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine. Compatible Products: ZBZ58; ZBZ1605; ZBY9W2B330; ZBY9420; ZBY9121 - Cross Sell Products: XALK84W3BE - Spare Part Products: XB5AS8444; XALK01H7
