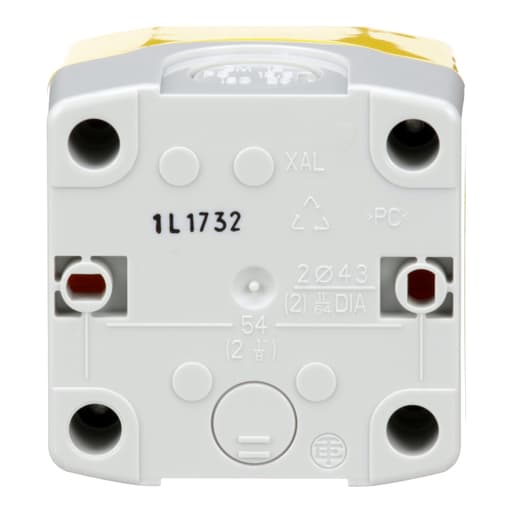

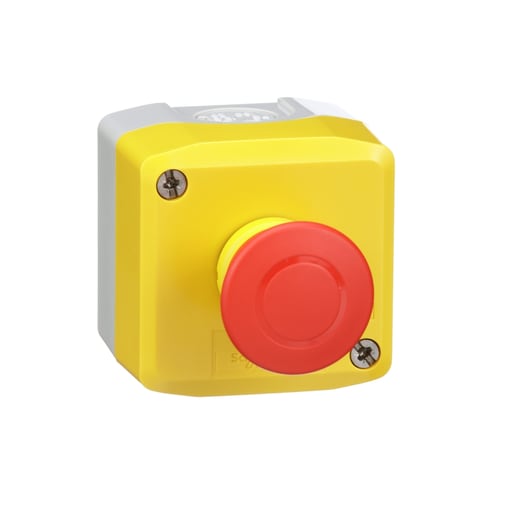

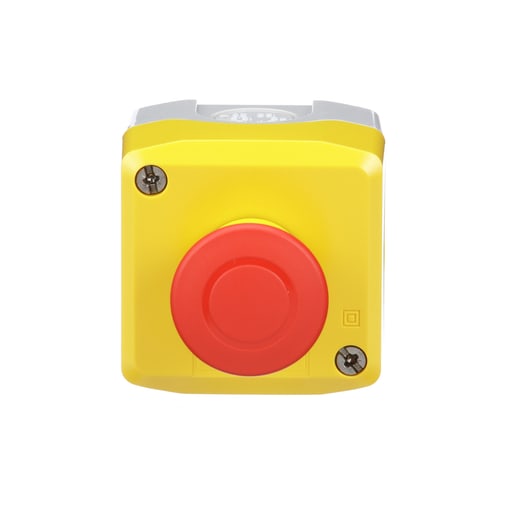

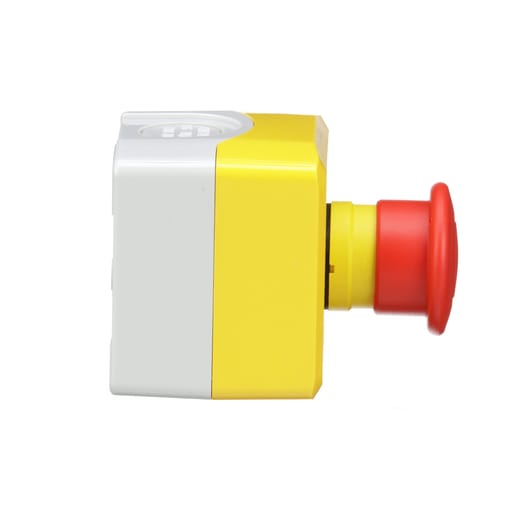

Square-D / Schneider - Square D XALK198H7 120 Volt 6 Amp SPST Red Mushroom Emergency Stop Switch

Essential specifications

12-Digit UPC - 606480669036
Actuator - Red unmarked 1 NC;1 mushroom head push-button
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Applications - For XB5 . 22 mm control and signalling units
Catalog Number - XALK198H7

Packaging

1 ea

EAN

03606480669033

Part #

153444

Catalog #

XALK198H7

Commercial reference

XALK198H7

12-Digit UPC:

606480669036

Actuator:

Red unmarked 1 NC;1 mushroom head push-button

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Applications:

For XB5 . 22 mm control and signalling units

Catalog Number:

XALK198H7

Country of Origin:

Czechia

ERP_productname:

SQD XALK198H7 PUSHBUTTON ENCLOSURE

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Material:

Polycarbonate

Sub Brand:

XALK

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

Complete control station

SoneparProductId:

SKU_US_26921465

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user.s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Its wide range of operating temperatures from -40.C to 70.C allows versatility in usage of product. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K. Compatible Products: ZBZ58; ZBZ1605; ZBY9W2B330; ZBY9420; ZBY9121 - Cross Sell Products: XALK84W3BE - Spare Part Products: ZB5AT84; XALK01H7
