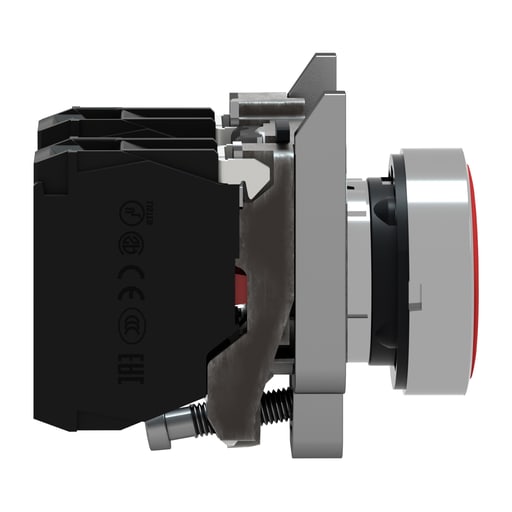

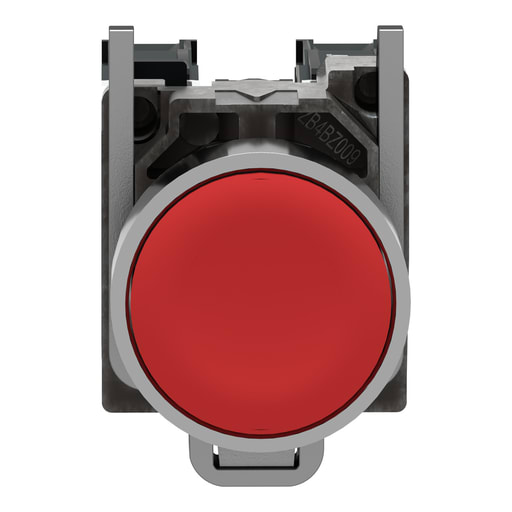

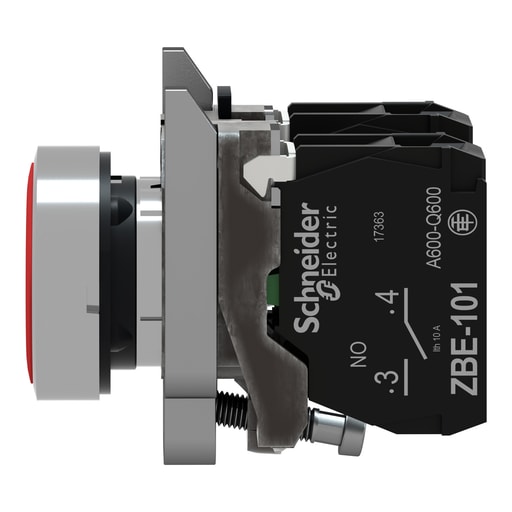

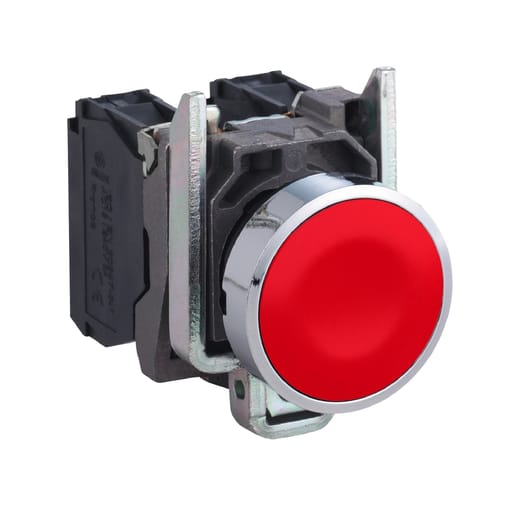

Square-D / Schneider - Square D XB4BA45 22 mm 600 VAC 1.2 Amp 1NO 1NC Red Round Momentary Flush Non-Illuminated Push Button
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480502319
Actuator - RED FLUSH, UNMARKED,SPRING RETURN
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Applications - NON ILLUMINATED PUSH-BUTTON
Catalog Number - XB4BA45
Packaging
1 ea
EAN
03606480502316
Part #
124490
Catalog #
XB4BA45
Commercial reference
XB4BA45
12-Digit UPC:
606480502319
Actuator:
RED FLUSH, UNMARKED,SPRING RETURN
Amperage:
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Applications:
NON ILLUMINATED PUSH-BUTTON
Catalog Number:
XB4BA45
Color:
Red
Country of Origin:
France
Depths:
52 mm
ERP_productname:
SQD XB4BA45 NON-ILL RED FLSH MOM PB
Enclosure:
NEMA 13-NEMA 4X
Family Brand Name:
Schneider Electric
Head Type:
Standard
Heights:
47 mm
Size:
2.05 in
Sub Brand:
XB4
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1
Type:
Push-button
Widths:
30 mm
SoneparProductId:
SKU_US_26711961
