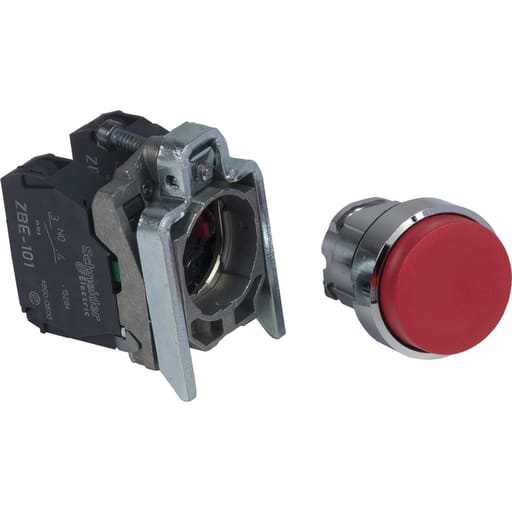

Square-D / Schneider - Square D XB4BL45 22 mm 600 VAC 1.2 Amp 1NO 1NC Red Round Momentary Extended Non-Illuminated Push Button

CopyCopy
Square-D / Schneider - Square D XB4BL45 22 mm 600 VAC 1.2 Amp 1NO 1NC Red Round Momentary Extended Non-Illuminated Push Button

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480502357

  • Actuator - FLUSH,SPRING RETURN

  • Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

  • Applications - NON ILLUMINATED PUSH-BUTTON

  • Catalog Number - XB4BL45

Packaging

  • 1 ea

EAN

03606480502354

Part #

151944

Catalog #

XB4BL45

Commercial reference

XB4BL45

12-Digit UPC:

606480502357

Actuator:

FLUSH,SPRING RETURN

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Applications:

NON ILLUMINATED PUSH-BUTTON

Catalog Number:

XB4BL45

Country of Origin:

USA

Depths:

52 mm

ERP_productname:

SQD XB4BL45 EXT,NON-ILL,RED,MOMENTARY W/1 N/O&1 N/C

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

47 mm

Size:

2.05 in

Sub Brand:

XB4

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

Push-button

Widths:

30 mm

SoneparProductId:

SKU_US_29934614

This push-button provides an ergonomic interface for controlling your machines and processes thanks to its protuding actuator Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 13 and 4X) Prop 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Related Products: ZB4BL4; ZB4BZ009; ZBE101; ZBE102 - Spare Part Products: ZB4BL4; ZB4BZ105
