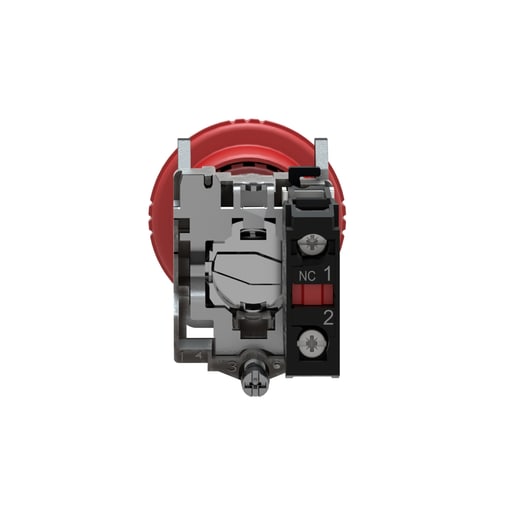

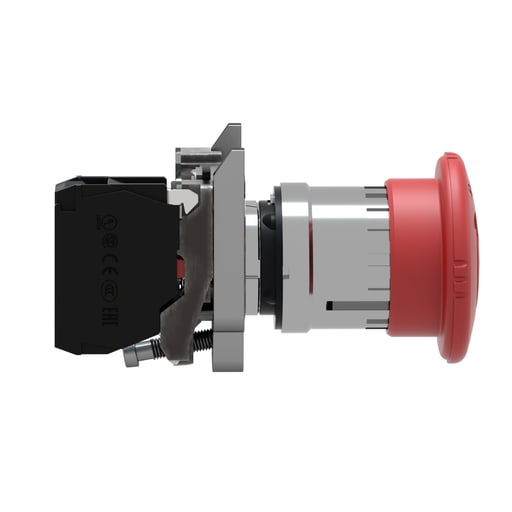

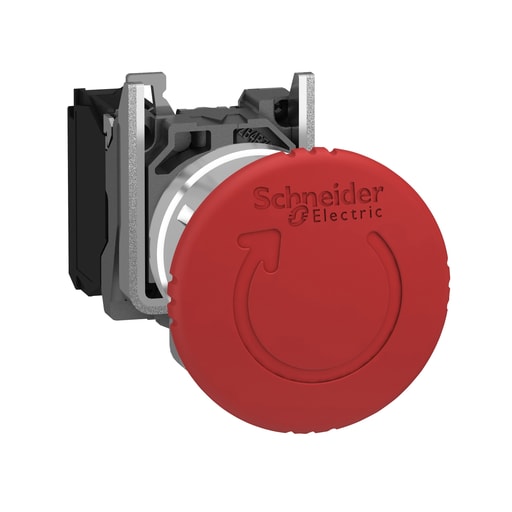

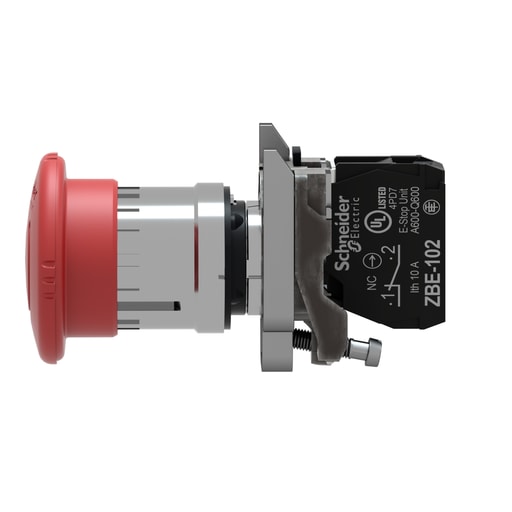

Square-D / Schneider - Square D XB4BS8442 Trigger Action Turn to Release Emergency Stop Button

Essential specifications

12-Digit UPC - 606480625056
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Applications - XB4
Catalog Number - XB4BS8442
Color - Red

Packaging

1 ea

EAN

03606480625053

Part #

178564

Catalog #

XB4BS8442

Commercial reference

XB4BS8442

12-Digit UPC:

606480625056

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Applications:

XB4

Catalog Number:

XB4BS8442

Color:

Red

Country of Origin:

France

Depths:

82 mm

ERP_productname:

SQD XB4BS8442 TRIGGER ACTION TURN TO RELEASE RED 40 MM

Family Brand Name:

Schneider Electric

Finish:

Chromium

Head Type:

Standard

Heights:

47 mm

Shape:

Round

Size:

22 MM,40 MM,47 MM,82 MM

Sub Brand:

XB4

Type:

EMERGENCY SWITCHING OFF PUSH-BUTTON-EMERGENCY STOP PUSH-BUTTON,TRIGGER ACTION AND MECHANICAL LATCHING

Widths:

40 mm

SoneparProductId:

SKU_US_26913986

This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched turn to release mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Prop 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZBZ1605; ZBY9330T; ZBY9140T; XAPK1501 - Cross Sell Products: XAPD1501 - Spare Part Products: ZB4BZ102; ZB4BS844
