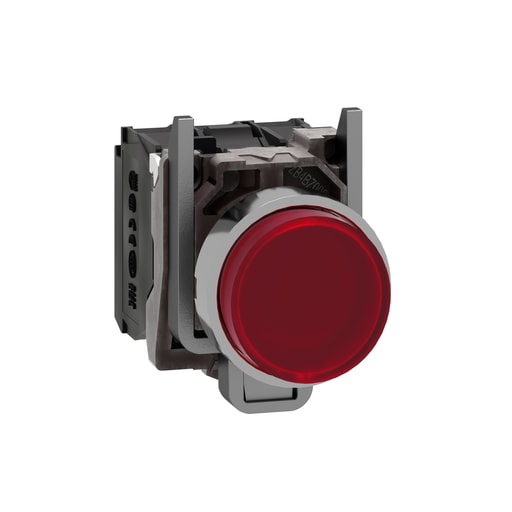

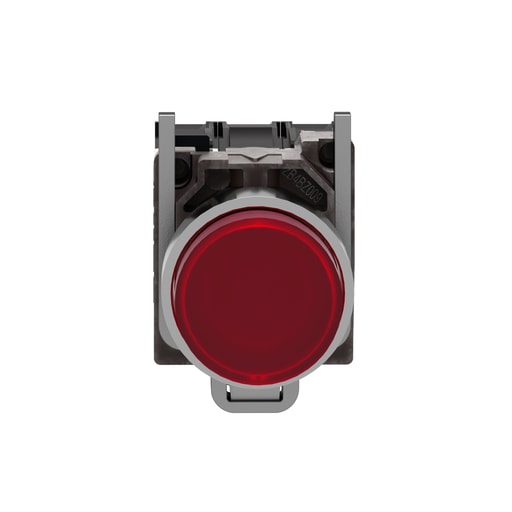

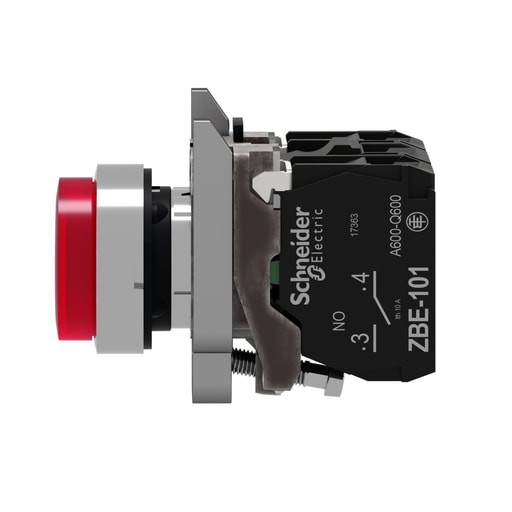

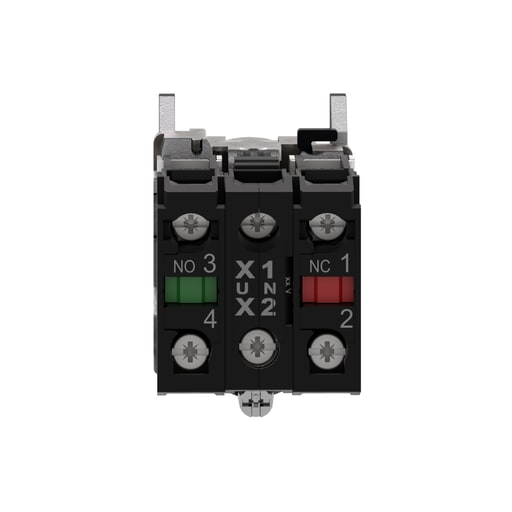

Square-D / Schneider - Square D XB4BW14B5 22 mm 24 VAC/VDC 18 mA 1NO 1NC Red Round Momentary Extended Illuminated Push Button

Essential specifications

12-Digit UPC - 606485266674
Actuator - RED FLUSH,SPRING RETURN
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB4BW14B5
Country of Origin - France

Packaging

1 ea

EAN

03606485266671

Part #

347432

Catalog #

XB4BW14B5

Commercial reference

XB4BW14B5

12-Digit UPC:

606485266674

Actuator:

RED FLUSH,SPRING RETURN

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB4BW14B5

Country of Origin:

France

Depths:

101 mm

ERP_productname:

SQD XB4BW14B5 22MM ILL EXT PB24V

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

47 mm

Size:

101 MM,22 MM,30 MM,47 MM

Sub Brand:

XB4

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

ILLUMINATED PUSH-BUTTON

Voltage:

110...120 Volt AC 50/60 HZ

Widths:

30 mm

SoneparProductId:

SKU_US_26663930

This Harmony XB4 illuminated modular red push button operates with a spring return mechanism, is supplied with 110-120V AC/DC, uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic spring return, plain lens, 1NO + 1NC, 110-120V. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Spare Part Products: ZB4BW143
